$ 240.00
Instant Discounts once added to cart!
Motorized ball valve with electronic return to close when power is removed. This is not a spring loaded actuator. With a nickel plated brass or SS316 body and 1 ", 3/4" or 1/2" FNPT thread, this valve is extremely resistant to hard water or water with high TDS content. Ideal replacement for a solenoid valve that fails frequently.
This actuator can handle 95 to 250 VAC and comes with a manual override for operation. With a IP67 enclosure, this is a heavy duty valve that can withstand water splashing and dust.
Need a cooling controller? Check the 140, 1575e or NexSys
Need a solenoid pump? Check out the AML 200, AKL 603, AKL 800 or AKL 803
Need water analysis products? Check them out here
These valves have a 12 months warranty on manufacturing defects! also:
We offer a 30-day money back guarantee on all products that have been purchased from us directly. All items must be returned as new in their original packaging, including all accessories and cables. Missing items will be charged based on suggested retail prices. All returns must be accompanied by a valid return authorization number (RMA) issued by us. If an RMA is not obtained prior to shipping, the returned product will be refused and returned to sender. Shipping cost is not refundable and returns must be shipped prepaid by the customer. To set up a return for refund please email sales@yamathosupply.com . Please be sure to include your order # and reason for returning in your email.
How much is costing you a failing solenoid valve? Solenoid valves are the most used type of electrically actuated valves for water applications. Unfortunately they use a small orifice to control the water flow. This presents two limitations; it can easily be plugged by solids in the water and, limits the water flow, creating big pressure drops. Our motorized ball valves replaces both electrically, and mechanically, any solenoid valve, without the problems mentioned before.
Technical Parameters:
|
Series |
Max Torque |
Operating Time |
Working Voltage |
Max Power |
Enclosure |
Max Pressure |
Max Temp |
Ambient Temp |
Humidity |
|
YS20S |
2N.M |
5-7S |
110V, 220V |
3W |
IP67 |
1.6 Mpa 230 psi |
-20~+100°C -4~+220°F |
-20 ~ +45°C -4 ~+113°F |
<95% |
|
4W |
|||||||||
|
5W |
For more details, please, click on the PDF icon.
$ 240.00
Instant Discounts once added to cart!
We ship same day to the continental US if order placed before 3pm EST.

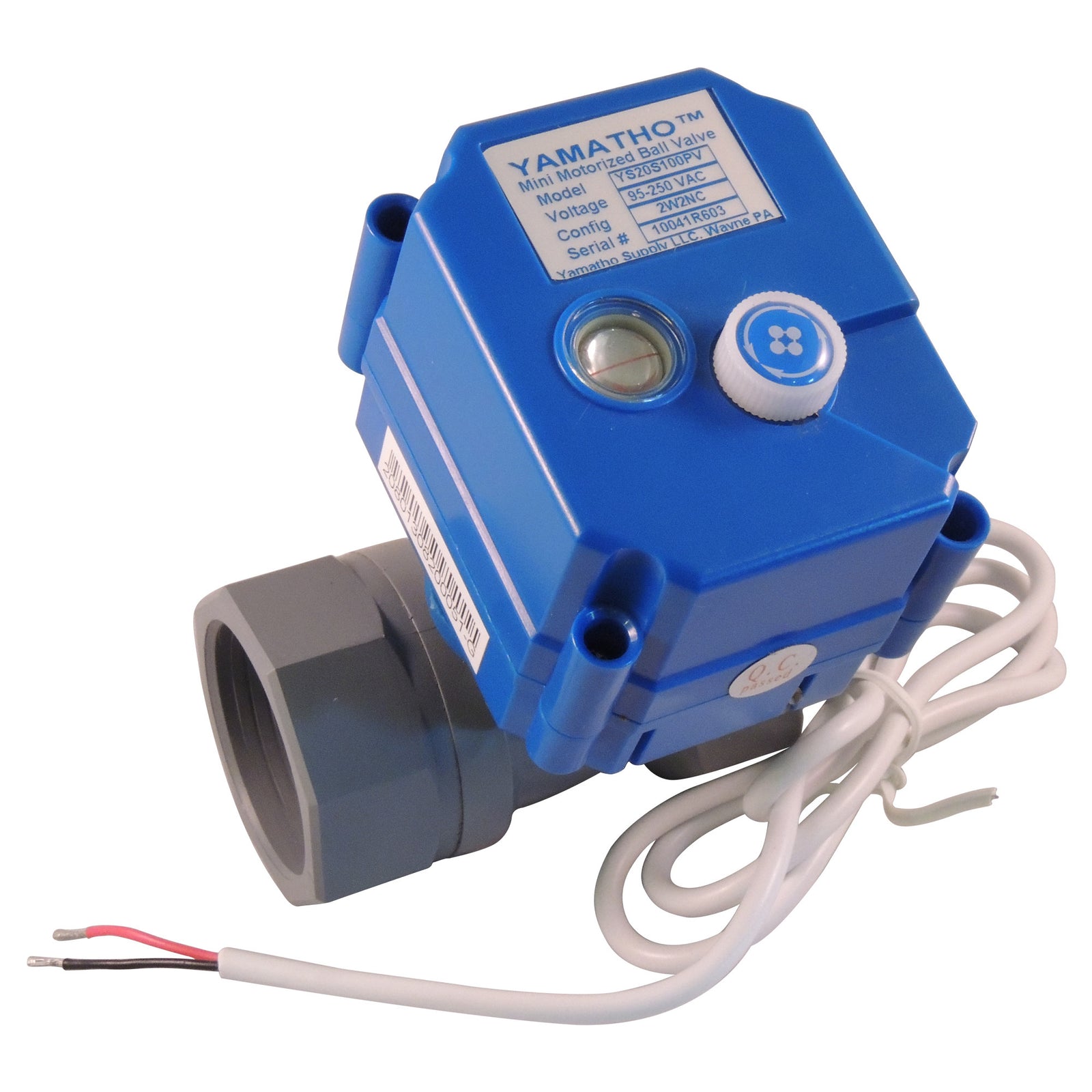

Motorized ball valve with electronic return to close when power is removed and, electric indication open/close. This is not a spring loaded actuator. With a nickel plated brass or SS316 body and 1 ", 3/4" or 1/2" FNPT thread, 1" PVC Socket ANSI, this valve is extremely resistant to hard water or water with high TDS content. Ideal replacement for a solenoid valve that fails frequently.
This actuator can handle 24 VDC and comes with a manual override for manual operation. With a IP67 enclosure, this is a heavy duty valve that can withstand water splashing and dust.
For more details, please, click on the PDF icon.
Need a cooling controller? Check the 140, 1575e or NexSys
Need a solenoid pump? Check out the AML 200, AKL 603, AKL 800 or AKL 803
Need water analysis products? Check them out here
$ 738.00
The Compact ClO2+ meter provides field analysis of chlorine and chlorine dioxide using the DPD method.
The original Palin system was designed for monitoring of all forms of chlorine. Dr Palin extended the method to measure alternative disinfectants such as chlorine dioxide – a powerful and increasingly popular biocide. The Compact ClO2+ meter delivers the following features:
Available in a choice of hard or soft case kits, the Compact ClO2+ meter is simplicity itself operating with four intuitive keys. Accessories include our unique Neutral Density Filter (NDF) check standards for validation in the field.
Watch this vide to see how it works! Click HERE
|
Instrument Type |
Dual wavelength, direct-reading colourimeter |
|
Optics |
Palintest dual LED light source optical system with narrow band wavelength filters and photodetectors |
|
Wavelengths |
530 nm |
|
Wavelength Tolerance |
± 2nm |
|
Filter Bandwidth |
10nm |
|
LCD Display |
128 x 64 pixel screen |
|
Instrument Operating Temperature Range |
0 to 50°C |
|
Test Cells |
25 mm diameter tubes |
|
Blank/Zero setting |
Held in memory or reset for each reading |
|
Power Supply |
2 x 1.5V ‘AA’ batteries. Auto switch-off setting. |
|
Size |
150 x 70 x 45 mm |
|
Weight |
185g (including batteries) |
REAGENTS
|
TEST |
RANGE (Cl2 - mg/l) |
RANGE (ClO2- mg/l) |
REAGENT PACKS(50 TESTS) |
REAGENT PACKS(250 TESTS) |
|
DPD No 1 Tablets |
0.01 - 5.0 |
0.02 - 10 |
||
|
DPD No 3 Tablets |
0.01 - 5.0 |
- |
||
|
DPD Glycine Tablets |
- |
- |
|
*Please contact us for pricing on reagents
Chlorometer, Chlorometer Instructions, 4 Crushing Rods, Test Tube Brush, 2 x Photometer Tubes.
Reagents:
Chlorine (DPD 1), Chlorine (DPD 3)
2 Cartons (100 reagents per carton)
$ 740.00 $ 800.00
Get the torque that you deserve! The Yamatho YSCN valves are high quality and high torque, capable of handling your tougher water application. With the same valve body of the proven YS160, the YSCN adds almost double the torque. With a metal actuator housing, smaller size actuator and, more configurations. This is a high quality, high torque motorized PVC ball valve, with position feedback.
Click on the icon to download the data sheet
Includes:
Control feedback model
Housing rated IP67
High performance brushless motor,overheat/overload protection
Long lasting operating life ( 20,000 open/close cycles)
Valve Body Description
Pressure Rating: 150 psi @ 74 Deg F
Adjustable seat tighteness
Easy to disasemble
※ For AC series,it is not recommended to use two or more actuators in parallel
Actuator
|
Model |
Torque |
Voltage |
Wiring |
Feedback |
Position Indicator |
Rotation |
Enclosure |
Manual Override |
Housing Material |
|
YSCN02NB3S |
20 N.m |
AC 110V |
B3S |
Yes |
None |
90 ° |
IP 67 |
Hexagon spanner |
Die Casting Aluminum |
Valves
|
Type |
Size |
Standard |
Material |
Actuator |
Length (in) |
Hight (in) Including actuator |
Width (in) |
|
YSCN02NB3S150UPV |
1 ½” |
FNPT (Union) |
UPVC, PTFE, EPDM |
YSCN02NB3S |
6.50 |
8.25 |
3.50 |
|
YSCN02NB3S200UPV |
2” |
FNPT (Union) |
UPVC, PTFE, EPDM |
YSCN02NB3S |
8.00 |
9.50 |
4.50 |
$ 1,295.00 $ 1,450.00
Lakewood 150 Boiler Surface Blowdown Controller with; SR2 Conductivity Sensor, 1/2 Union, and orifice plate. All you need is to order a 1/2" Motorized Blowdown Valve (p/n 1269179), and you are ready to go!
The Model 150 can be used in the Continuous Sample, Sample/ Cycle, or Sample/Hold modes to control the boiler water conductivity. It can also generate a 4/20mA signal to a remotely located conductivity indicator, measure and accumulate boiler's feedwater flow, and feed chemicals to the boiler.
$ 32.00 $ 36.00
The Flow Regulator (Dole valve) is designed to deliver a constant volume of water flow over a wide pressure drop range. The constant flow of water is maintained by the use of the flexible orifice. The flow rate is maintained to within ± 15% between 15 and 125 psi. The flow rate varies due to manufacturing tolerances and water temperature. We manufacture flow regulators in various materials such as Nickel Plated Brass, Type 316 SS, and PVC. Flow Regulators come in various flow rates and are 3/8”, ½”, ¾”, 1” FNPT, and 1 ¼”, 1 ½”, 2”, 2 ½”, and 3” MNPT and flow rates range from 0.5 to 120 Gallon per minute (GPM). We also use labels that provide extra-strong protection for harsh environments and conditions. They are constructed from durable polyester that is water resistant and tear resistant providing durable and secure protection. All Flow Regulators are marked with an arrow indicating direction of flow. To ensure proper operation, always install regulator with the arrow pointed downstream.
$ 580.00 $ 672.00

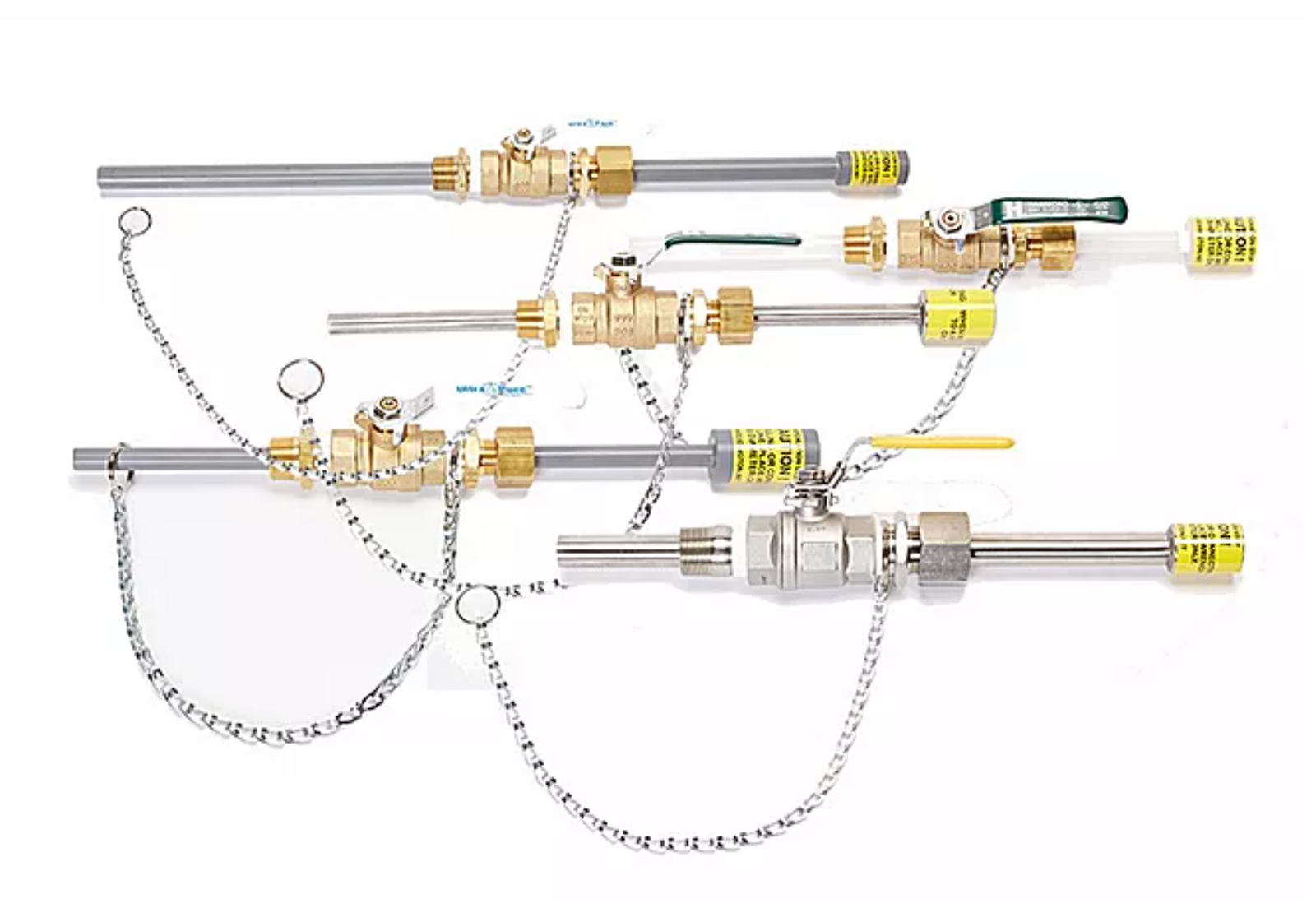

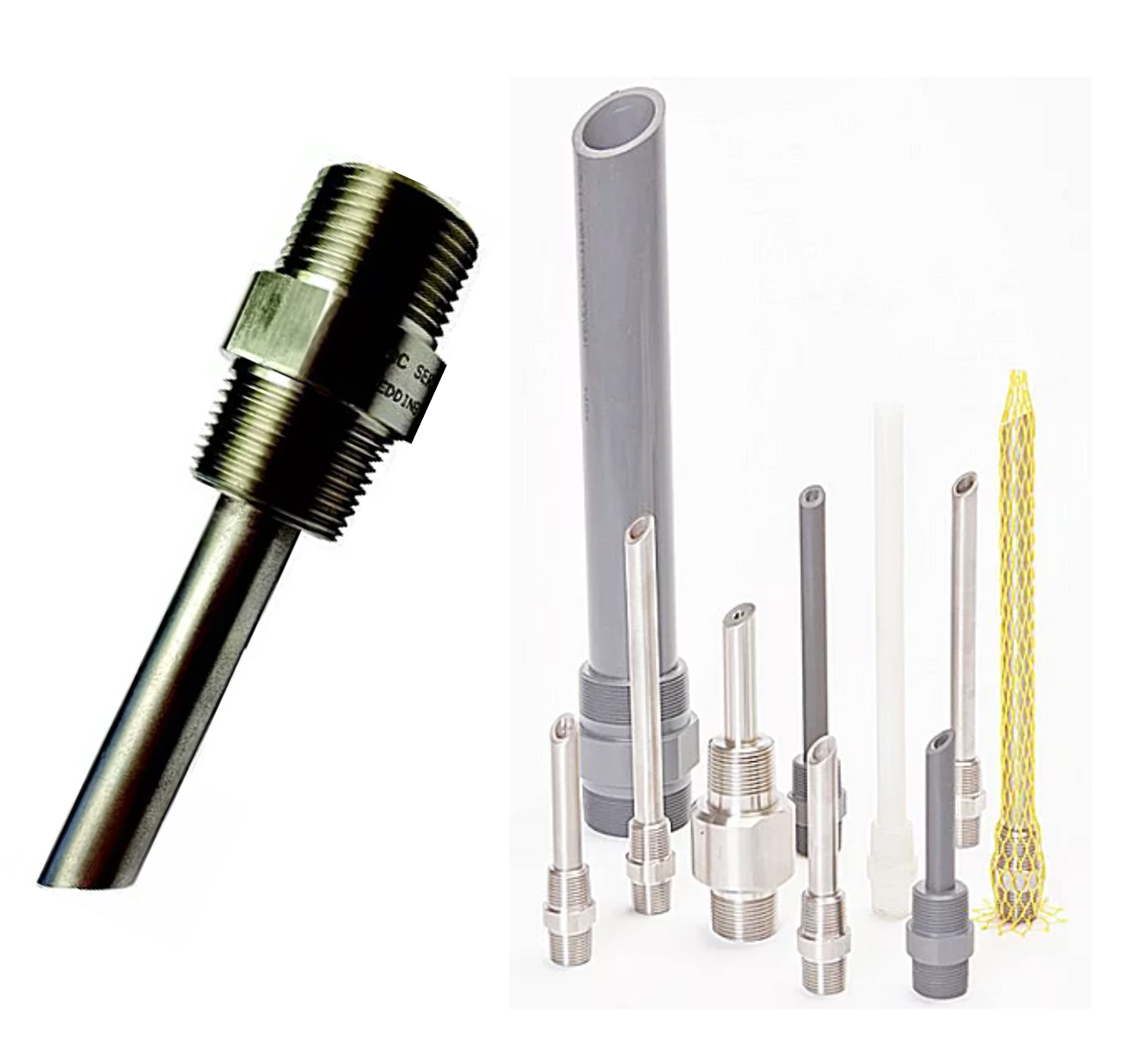

Injection quills are designed to ensure a more uniform and rapid dispersal of injection chemicals into the center stream of a process pipeline. This prevents corrosive liquids from clinging to the side of the pipe. The Duplex Injection Quill allows multiple chemicals to be inserted simultaneously. Duplex Injection Quills are primarily made from 316 Stainless Steel, but other materials are available. Pressure and temperature are dependent on the material of construction and vary from 100 °F (37 °C) to 500 °F (260 °C) at 1000 psi max.
Injection nozzle allows for proper injection into liquid, gas or mixed phase system
Nozzles can be removed for inspection without system shutdown Adjustable quill permits precise positioning of quill in fluid flow and restrains stinger
during insertion/removal
Wetted Parts: Type 316 stainless steel
Packing: Graphite (maximum temperature - 700 °F)
materials
Process Connection
Specifications
Chemical Inlet Connections
Process Connection
Material
$ 279.00 $ 399.00
The Yamatho Coupon Rack Kit allows for an economical way to build a corrosion coupon rack. The kit comes complete with everything you need (including Teflon tape) to assemble your own coupon rack.
The corrosion test rack simplifies the procedure for establishing a corrosion monitoring program. The coupon rack kit consists of ¾” or 1” threaded PVC schedule 40 clear PVC pipe and PVC fittings. The kit is easily assembled via threaded connections and an easy to follow instruction guide. This kit also includes (4) foam covers to minimize exposure to sunlight.
Four test coupon holders are provided so that multi-metallic systems can be tested. An inline 5 or 12 GPM Eddington flow regulator is incorporated into the assembly for
maintaining constant water velocity. A variable in-line flow meter is also available as an option for critical measurement of water velocities. An optional clear Y-strainer is available to help maintain water velocity through the flow meter and pipe rack.
The corrosion test rack is designed according to ASTM designation D2688-70 which specifies the monitoring of corrosivity of water in the absence of heat transfer (weight loss methods).
Made in the USA.
Order your coupons here!
Need water analysis products? Check them out here
Need a cooling controller? Check the 140, 1575e or NexSys
Need a solenoid pump? Check out the AML 200, AKL 603, AKL 800 or AKL 803
Need a blowdown valve? Check out the YS20S from Yamatho
¾” or 1”clear PVC, four station coupon rack.
Construction: ¾” or 1” clear threaded PVC sch. 40 pipe and standard Sch, 80 PVC fittings.
Dimensions: 24” H x 30” W.
Flow regulator: 5 GPM for 3/4″ kit or 10 GPM for 1″ kit Nickel Plated Steel Eddington flow regulator.
Coupon holders: 4 coupon holders with stainless steel hardware.
Foam covers: 4 foam covers for clear PVC pipe to minimize exposure to light.
Other Construction materials available:
$ 174.00 $ 190.00
The Flow Regulator (Dole valve) is designed to deliver a constant volume of water flow over a wide pressure drop range. The constant flow of water is maintained by the use of the flexible orifice. The flow rate is maintained to within ± 15% between 15 and 125 psi. The flow rate varies due to manufacturing tolerances and water temperature. We manufacture flow regulators in various materials such as Nickel Plated Brass, Type 316 SS, and PVC. Flow Regulators come in various flow rates and are 3/8”, ½”, ¾”, 1” FNPT, and 1 ¼”, 1 ½”, 2”, 2 ½”, and 3” MNPT and flow rates range from 0.5 to 120 Gallon per minute (GPM). We also use labels that provide extra-strong protection for harsh environments and conditions. They are constructed from durable polyester that is water resistant and tear resistant providing durable and secure protection. All Flow Regulators are marked with an arrow indicating direction of flow. To ensure proper operation, always install regulator with the arrow pointed downstream.
$ 3,494.00 $ 3,870.00
The Kontrol 200-series are advanced controllers designed
for simpler high-end applications. The units feature an
independent proportional control output, probe quality
checking and a variety of outputs . The user has full
programming authority.
Includes controller, probe and probe header with flow control.
Graphic display and Keypad 128 by 64 pixel resolution
monochrome display with graphic icons to show digital output status,
washing cycle, alarms. Simultaneous flashing values for the
measurement (numeric + bar-graph) and temperature readings.
Four control keys for instrument calibration and configuration.
Manual controls; The user-friendly programming step menu makes starting up and checking the control and dosing system easy. Measure Input
High measuring resolution with probe quality control. A modular measuring system.Chlorine measure in sea water application.
Digital Input; Dedicated to disable all controller output functions
Current outputs 4÷20mA Galvanic isolation One independent programmable
Output Measures. Relay Outputs Four independent relays, two set points,
one alarm remote output, on back washing probe output. On/OFF, Timed routine function setting.
Hydrogen Peroxide probe: Hydroen Peroxide (RANGE 0÷500PPM) #Range pH: 2÷11
Wall mounting ABS plastic material IP65 (144x144)
Panel mounting IP54 (96x96) universal Power Supply
100>240 Vac 50/60 Hz
