Corporation Stop - for chemical injection in pressurized lines
$ 186.00 $ 190.00
Description
Injection nozzle designed to assure the correct introduction of chemicals in the system. With safety features that allow the installation and removal under pressure. This device can introduce the chemical at the right location inside the system pipe.
Features
Protection chain to prevent the Nozzle Assembly from being completely withdrawn before Corporation
Stop is closed and is a safety feature to protect against back pressure
Built-in check valves to prevent backflow of water or steam through the nozzle and into the chemical line.
Specifications
Operating pressures to 150 psi (Kynar, Alloy 20, SS316), 125 psi (CPVC)
Quill available in: Corrosion-resistant CPVC, 316 Stainless Steel and Alloy 20
Corporation Stop (brass only) available with ¾” or 1” process connections Contact Us for a quote.
Quill connection ½” female all models
High pressure, high temperature application
Simple to use ½”, ¾”, or 1” NPT male process connection and
½”, ¾”, or 1” NPT male chemical inlet connection
Built-in check valves to prevent backflow of water or steam through the nozzle and into the chemical line.
Two machined flat surfaces on external portion of nozzle so a wrench can be used during installation
Telltale to ensure proper nozzle alignment with process steam for proper dispersal of injected chemical
Also available CPVC, Alloy 20 and Hastelloy
Made in the USA
Corrosion coupon rack kit
$ 366.00 $ 399.00
DESCRIPTION
The Yamatho Coupon Rack Kit allows for an economical way to build a corrosion coupon rack. The kit comes complete with everything you need (including Teflon tape) to assemble your own coupon rack.
The corrosion test rack simplifies the procedure for establishing a corrosion monitoring program. The coupon rack kit consists of ¾” or 1” threaded PVC schedule 40 clear PVC pipe and PVC fittings. The kit is easily assembled via threaded connections and an easy to follow instruction guide. This kit also includes (4) foam covers to minimize exposure to sunlight.
Four test coupon holders are provided so that multi-metallic systems can be tested. An inline 5 or 12 GPM Eddington flow regulator is incorporated into the assembly for
maintaining constant water velocity. A variable in-line flow meter is also available as an option for critical measurement of water velocities. An optional clear Y-strainer is available to help maintain water velocity through the flow meter and pipe rack.
The corrosion test rack is designed according to ASTM designation D2688-70 which specifies the monitoring of corrosivity of water in the absence of heat transfer (weight loss methods).
Made in the USA.
Order your coupons here!
Need water analysis products? Check them out here
APPLICATIONS

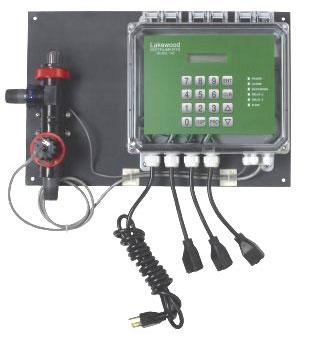

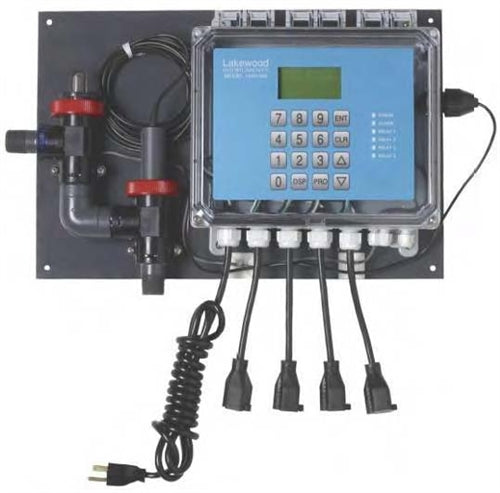

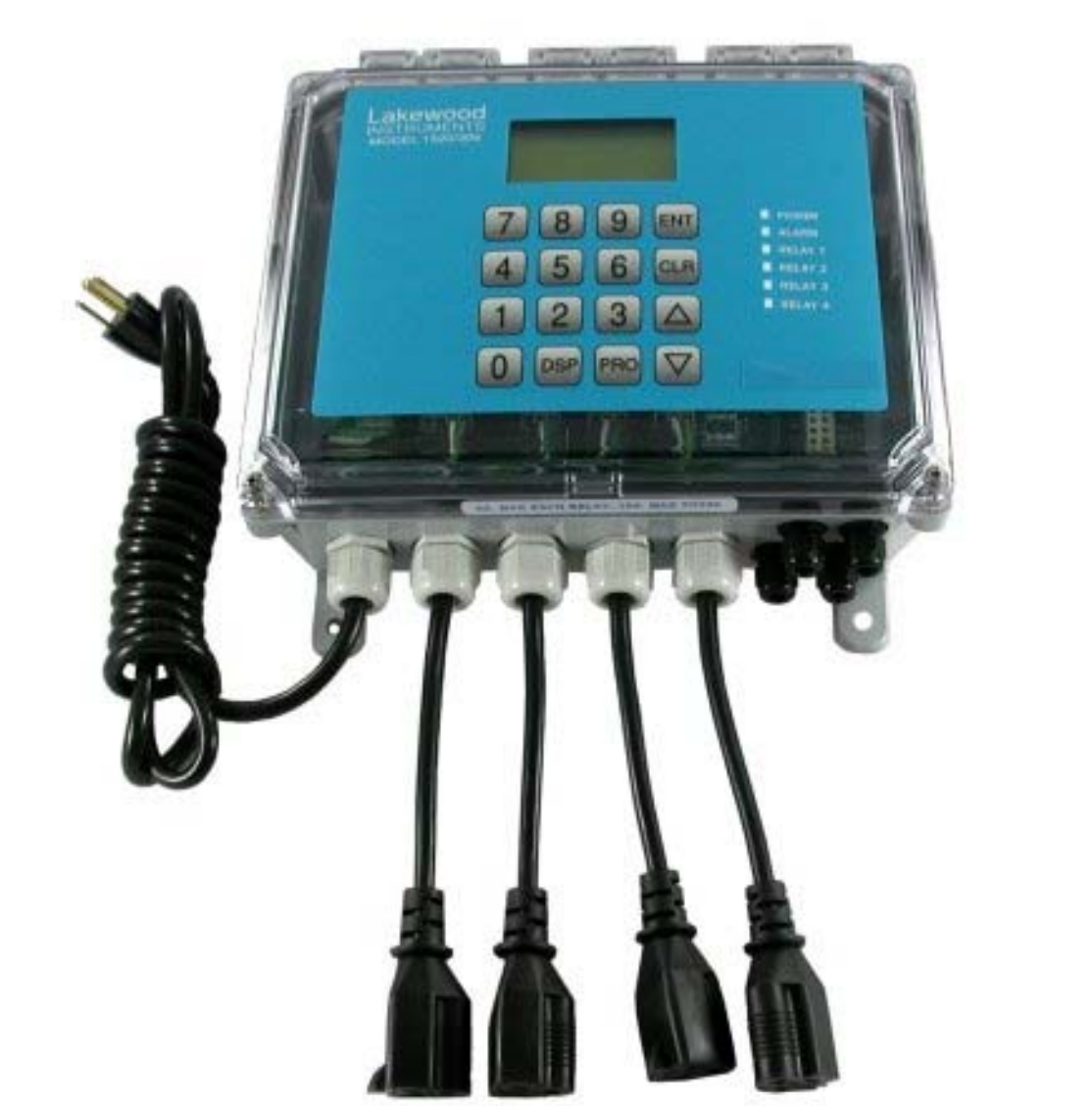

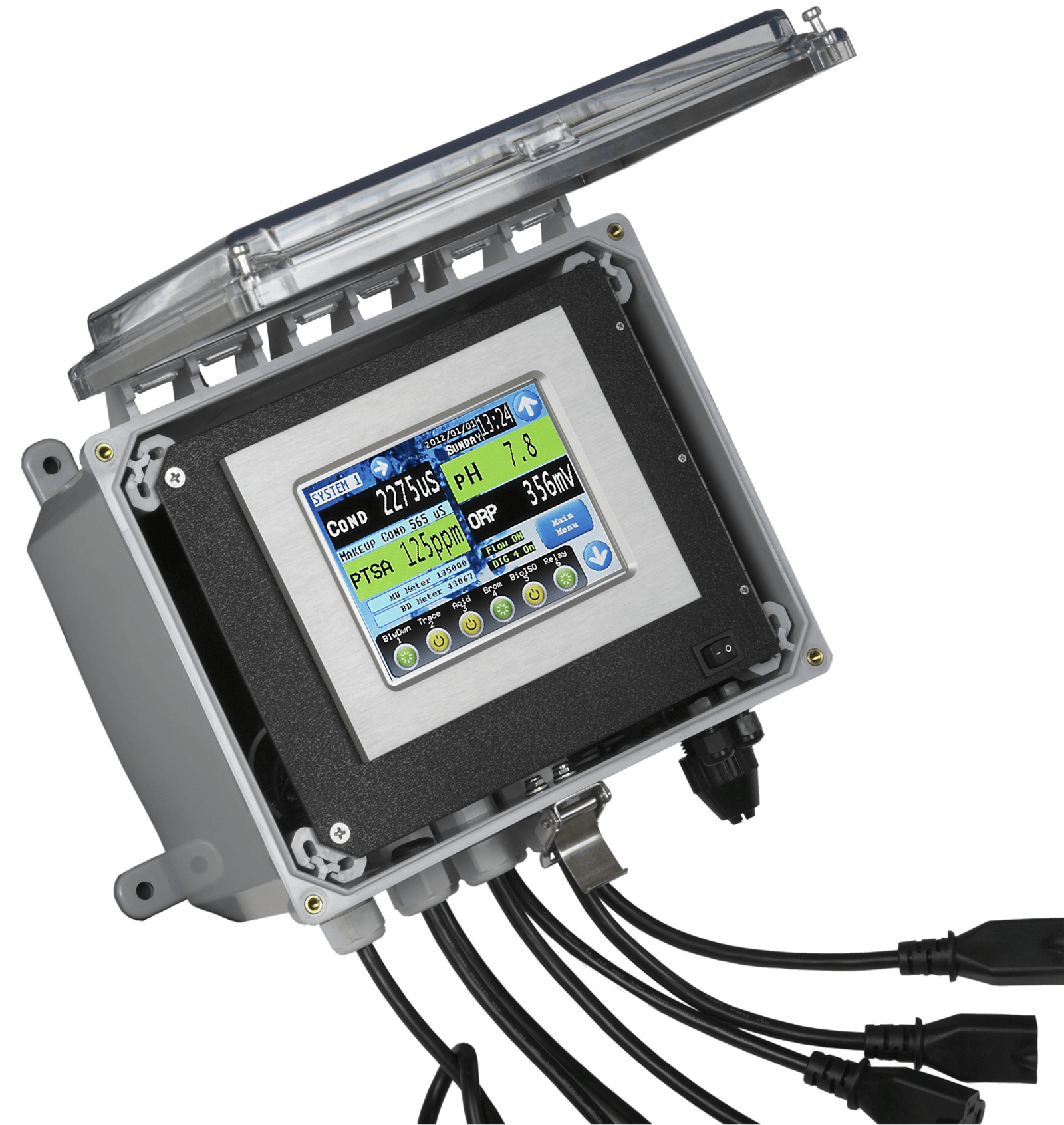

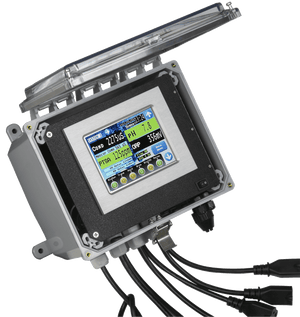

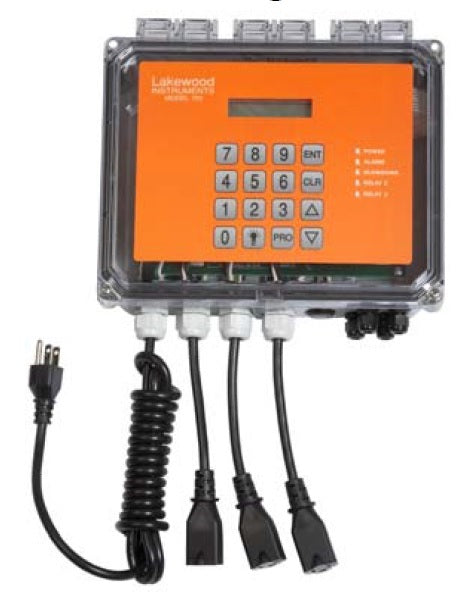

Need a cooling controller? Check the 140, 1575e or NexSys

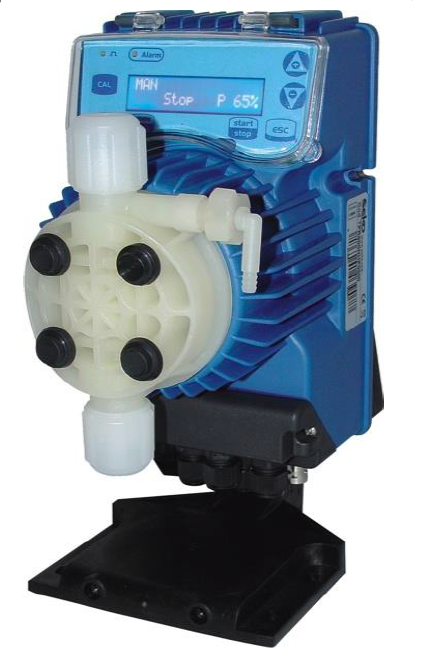

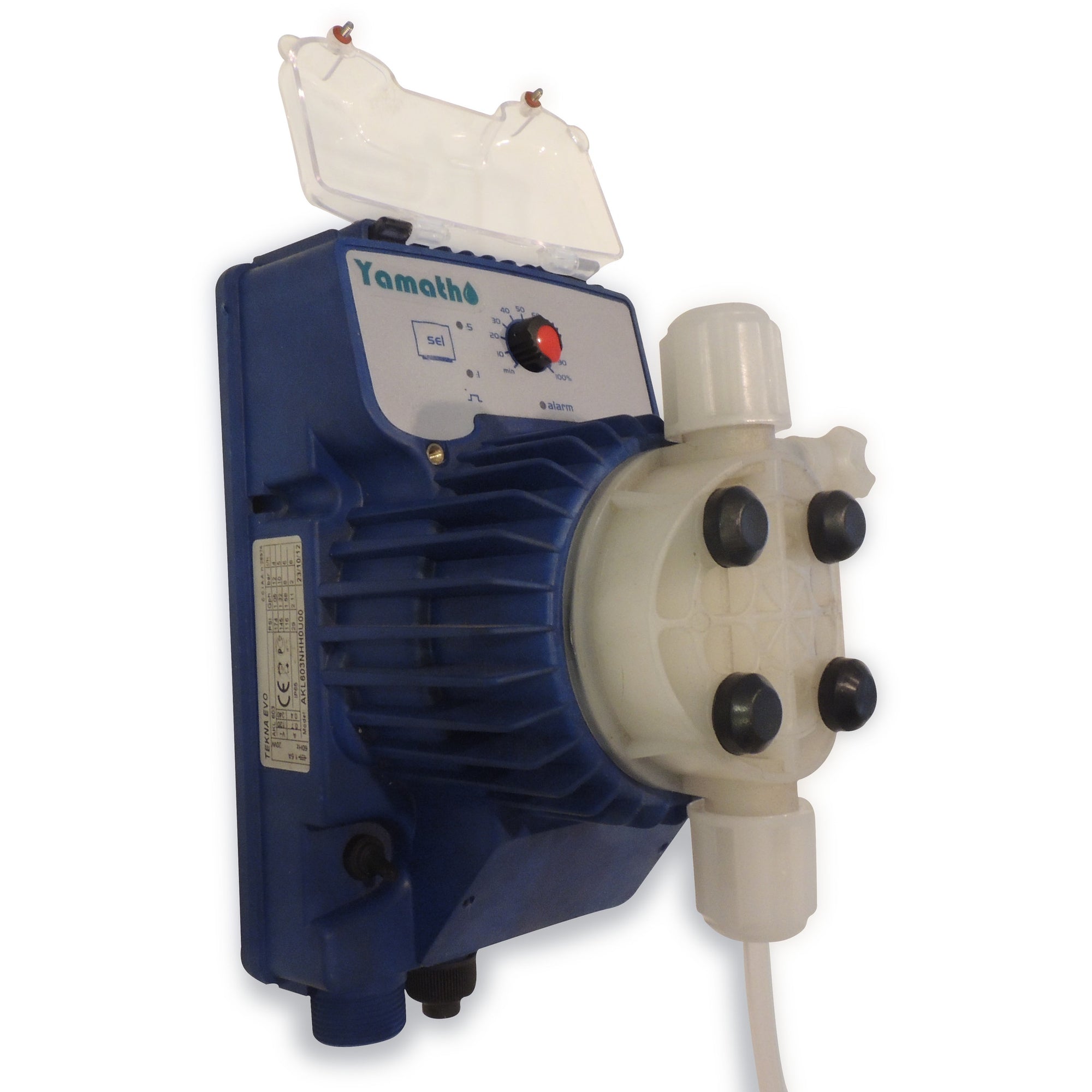

Need a solenoid pump? Check out the AML 200, AKL 603, AKL 800 or AKL 803
Need a blowdown valve? Check out the YS20S from Yamatho
SPECIFICATIONS
¾” or 1”clear PVC, four station coupon rack.
Construction: ¾” or 1” clear threaded PVC sch. 40 pipe and standard Sch, 80 PVC fittings.
Dimensions: 24” H x 30” W.
Flow regulator: 5 GPM for 3/4″ kit or 10 GPM for 1″ kit Nickel Plated Steel Eddington flow regulator.
Coupon holders: 4 coupon holders with stainless steel hardware.
Foam covers: 4 foam covers for clear PVC pipe to minimize exposure to light.
Other Construction materials available:
Flow regulator (Dole valve), FNPT SS316 1.0 to 30 GPM with Buna orifice
$ 174.00 $ 190.00
DESCRIPTION
The Flow Regulator (Dole valve) is designed to deliver a constant volume of water flow over a wide pressure drop range. The constant flow of water is maintained by the use of the flexible orifice. The flow rate is maintained to within ± 15% between 15 and 125 psi. The flow rate varies due to manufacturing tolerances and water temperature. We manufacture flow regulators in various materials such as Nickel Plated Brass, Type 316 SS, and PVC. Flow Regulators come in various flow rates and are 3/8”, ½”, ¾”, 1” FNPT, and 1 ¼”, 1 ½”, 2”, 2 ½”, and 3” MNPT and flow rates range from 0.5 to 120 Gallon per minute (GPM). We also use labels that provide extra-strong protection for harsh environments and conditions. They are constructed from durable polyester that is water resistant and tear resistant providing durable and secure protection. All Flow Regulators are marked with an arrow indicating direction of flow. To ensure proper operation, always install regulator with the arrow pointed downstream.
APPLICATIONS
- Cooling towers
- Water softeners
- Tankless heaters
- Water filters
- Ground water heat pumps
- Irrigation systems
- Pumps (well and packing water)
- Drinking fountains
- Water purifiers
MATERIALS
- Stainless steel 316
- Sizes: 3/8”, ½”, ¾”, 1”, 1 ¼”, 1 ½”, 2, 2 ½”, 3”, NPT
- Rubber orifice: Buna, Viton, EPDM
- Custom connections, materials and sizes available
- Lead free (LF) available
Flow regulator (Dole valve), FNPT, 1.0 to 30 GPM with Buna orifice
$ 57.00 $ 36.00
DESCRIPTION
The Flow Regulator (Dole valve) is designed to deliver a constant volume of water flow over a wide pressure drop range. The constant flow of water is maintained by the use of the flexible orifice. The flow rate is maintained to within ± 15% between 15 and 125 psi. The flow rate varies due to manufacturing tolerances and water temperature. We manufacture flow regulators in various materials such as Nickel Plated Brass, Type 316 SS, and PVC. Flow Regulators come in various flow rates and are 3/8”, ½”, ¾”, 1” FNPT, and 1 ¼”, 1 ½”, 2”, 2 ½”, and 3” MNPT and flow rates range from 0.5 to 120 Gallon per minute (GPM). We also use labels that provide extra-strong protection for harsh environments and conditions. They are constructed from durable polyester that is water resistant and tear resistant providing durable and secure protection. All Flow Regulators are marked with an arrow indicating direction of flow. To ensure proper operation, always install regulator with the arrow pointed downstream.
APPLICATIONS
- Cooling towers
- Water softeners
- Tankless heaters
- Water filters
- Ground water heat pumps
- Irrigation systems
- Pumps (well and packing water)
- Drinking fountains
- Water purifiers
MATERIALS
- PVC, stainless steel, lead free nickel plated brass
- Sizes: 3/8”, ½”, ¾”, 1”, 1 ¼”, 1 ½”, 2, 2 ½”, 3”, NPT
- Rubber orifice: Buna, Viton, EPDM
- Custom connections, materials and sizes available
- Lead free (LF) (sizes 1" and smaller)
High pressure chemical injection quill; single and duplex
$ 580.00 $ 672.00
DESCRIPTION
Injection quills are designed to ensure a more uniform and rapid dispersal of injection chemicals into the center stream of a process pipeline. This prevents corrosive liquids from clinging to the side of the pipe. The Duplex Injection Quill allows multiple chemicals to be inserted simultaneously. Duplex Injection Quills are primarily made from 316 Stainless Steel, but other materials are available. Pressure and temperature are dependent on the material of construction and vary from 100 °F (37 °C) to 500 °F (260 °C) at 1000 psi max.
Injection nozzle allows for proper injection into liquid, gas or mixed phase system
Nozzles can be removed for inspection without system shutdown Adjustable quill permits precise positioning of quill in fluid flow and restrains stinger
during insertion/removal
APPLICATION
- Available in larger sizes, up to 3” MNPT connection
- Welded safety collar
- Also available CPVC, Alloy 20 Hastelloy
- Made in the USA
FEATURES
Wetted Parts: Type 316 stainless steel
Packing: Graphite (maximum temperature - 700 °F)
materials
Process Connection
- ¾” or 1” MNPT (standard)
- Quill, ¼” pipe
- Pressure rating: 300 psi
Specifications
Chemical Inlet Connections
- ¼” MNPT chemical inlet connection
- ¼” FNPT chemical inlet connection
Process Connection
- ½” or ¾” MNPT process connection
Material
- 316 stainless steel construction
- Other materials available upon request

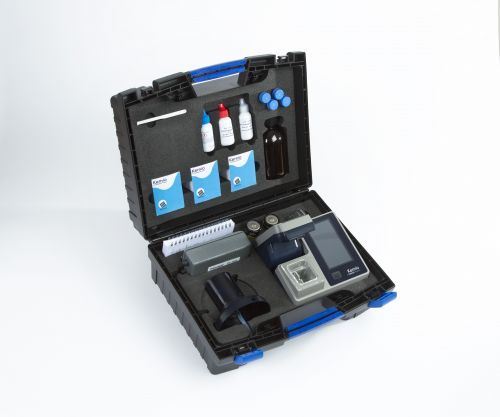

Palintest Kemio instrument kit hard carrying case p/n KEMH10DIS
$ 3,105.00 $ 3,450.00
DESCRIPTION
Kemio™ is the next generation measurement platform, delivering the validation you need from a method you can trust. Kemio™ utilizes a sophisticated electrochemical technique which removes complexity for the user, giving you clear results for confident decision making.
- Repeatable and reliable results with minimal user input
- Automatically stores all results for a complete, auditable dataset
- Truly simple test method requiring no user training
- Get clear pass/fail results to enable corrective action
- Suitable for all sample types, not affected by colour, turbidity, floating particles or ambient ligh
- Kemio uses the same EPA approved method as the ChloroSense and ChlordioX Plus
Multiparameter testing platform
Kemio™ performs tests for Chlorine (free and total), Chlorine Dioxide, Chlorite and Peracetic Acid (PAA) on one instrument with the use of different sensors.
KIT CONTENT
Instrument, hard protective case, check standards, USB cable, international power adapter, quick start instructions and stylus soft case for transporting Kemio and consumables.
REAGENTS
Reagent |
# of Tests |
Range |
Part number |
CR-1 Reagent (Chlorite Test) |
|
|
PT546 |
CR-2 Reagent (Chlorite Test) |
|
|
PT547 |
Glycine Reagent |
|
|
PT549 |
Kemio Sensors for Chlorine (High Range) |
100 |
Free Chlorine 0.1 – 25 mg/LTotal Chlorine 1- 500 mg/L |
KEM21CHR |
Kemio Sensors for Chlorine (High Range) |
500 |
Free Chlorine 0.1 – 25 mg/LTotal Chlorine 1- 500 mg/L |
KEM25CHR |
Kemio Sensors for Chlorine (Standard Range) |
100 |
Free Chlorine 0.02 - 10 mg/LTotal Chlorine 0.02 - 75 mg/L |
KEM21CLO |
Kemio Sensors for Chlorine (Standard Range) |
500 |
Free Chlorine 0.02 - 10 mg/LTotal Chlorine 0.02 - 75 mg/L |
KEM25CLO |
Kemio Sensors for Chlorine Dioxide/Chlorite |
100 |
Chlorine Dioxide 0.02 - 500 mg/LChlorite 0.02 - 50 mg/L |
KEM21CDX |
Kemio Sensors for Chlorine Dioxide/Chlorite |
500 |
Chlorine Dioxide 0.02 - 500 mg/LChlorite 0.02 - 50 mg/L |
KEM25CDX |
Kemio Sensors for Paracetic Acid (Low Range) |
100 |
0.02 – 50 mg/L |
KEM21PAL |
Kemio Sensors for Paracetic Acid (Low Range) |
500 |
0.02 – 50 mg/L |
KEM25PAL |
Kemio Sensors for Paracetic Acid (PAA) |
100 |
5 – 2000 mg/L |
KEM21PAA |
Kemio Sensors for Paracetic Acid (PAA) |
500 |
5 – 2000 mg/L |
KEM21PAA |

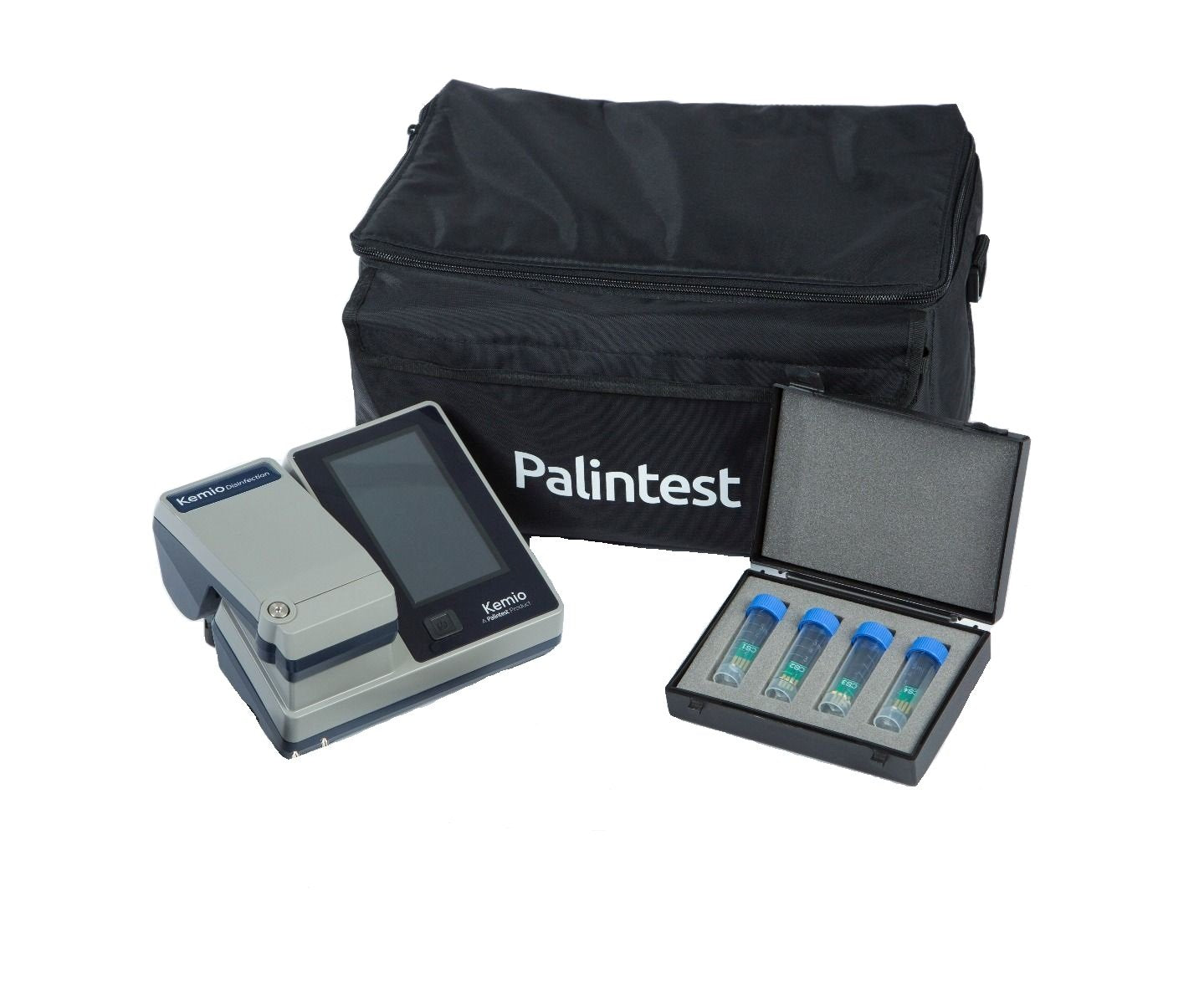

Palintest Kemio instrument kit soft carrying bag p/n KEMS10DIS
$ 2,300.00 $ 2,450.00
DESCRIPTION
Kemio™ is the next generation measurement platform, delivering the validation you need from a method you can trust. Kemio™ utilizes a sophisticated electrochemical technique that removes complexity for the user, giving you clear results for confident decision making.
- Repeatable and reliable results with minimal user input
- Automatically stores all results for a complete, auditable dataset
- Truly simple test method requiring no user training
- Get clear pass/fail results to enable corrective action
- Suitable for all sample types, not affected by color, turbidity, floating particles or ambient light
- Kemio uses the same EPA approved method as the ChloroSense and ChlordioX Plus
Multiparameter testing platform
Kemio™ performs tests for Chlorine (free and total), Chlorine Dioxide, Chlorite and Peracetic Acid (PAA) on one instrument with the use of different sensors.
KIT CONTENT
Instrument, soft protective case, check standards, USB cable, international power adapter, quick start instructions and stylus soft case for transporting Kemio and consumables.
REAGENTS
Reagent |
# of Tests |
Range |
Part number |
CR-1 Reagent (Chlorite Test) |
|
|
PT546 |
CR-2 Reagent (Chlorite Test) |
|
|
PT547 |
Glycine Reagent |
|
|
PT549 |
Kemio Sensors for Chlorine (High Range) |
100 |
Free Chlorine 0.1 – 25 mg/LTotal Chlorine 1- 500 mg/L |
KEM21CHR |
Kemio Sensors for Chlorine (High Range) |
500 |
Free Chlorine 0.1 – 25 mg/LTotal Chlorine 1- 500 mg/L |
KEM25CHR |
Kemio Sensors for Chlorine (Standard Range) |
100 |
Free Chlorine 0.02 - 10 mg/LTotal Chlorine 0.02 - 75 mg/L |
KEM21CLO |
Kemio Sensors for Chlorine (Standard Range) |
500 |
Free Chlorine 0.02 - 10 mg/LTotal Chlorine 0.02 - 75 mg/L |
KEM25CLO |
Kemio Sensors for Chlorine Dioxide/Chlorite |
100 |
Chlorine Dioxide 0.02 - 500 mg/LChlorite 0.02 - 50 mg/L |
KEM21CDX |
Kemio Sensors for Chlorine Dioxide/Chlorite |
500 |
Chlorine Dioxide 0.02 - 500 mg/LChlorite 0.02 - 50 mg/L |
KEM25CDX |
Kemio Sensors for Paracetic Acid (Low Range) |
100 |
0.02 – 50 mg/L |
KEM21PAL |
Kemio Sensors for Paracetic Acid (Low Range) |
500 |
0.02 – 50 mg/L |
KEM25PAL |
Kemio Sensors for Paracetic Acid (PAA) |
100 |
5 – 2000 mg/L |
KEM21PAA |
Kemio Sensors for Paracetic Acid (PAA) |
500 |
5 – 2000 mg/L |
KEM21PAA |
Palintest p/n KEM21CDX Kemio sensors 100 x Chlorine Dioxide & Chlorite
$ 149.50 $ 179.40
DESCRIPTION
KEM21CDX Chlorine Dioxide/Chlorite sensors, 100 pack
100 replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM21CHR Kemio sensors 100 x Chlorine Total and Free High Range
$ 149.50 $ 179.40
DESCRIPTION
KEM21CLO Kemio sensors 100 x Chlorine Total and Free high range, 100 pack
replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM21CLT Kemio sensors 100 x Chlorine Total and Free High Range Low Temp
$ 149.50 $ 179.40
DESCRIPTION
KEM21CLT Kemio sensors 100 x Chlorine Total and Free high range and low temp, 100 pack replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM25CDX Kemio sensors 500 x Chlorine Dioxide & Chlorite
$ 471.50 $ 565.80
DESCRIPTION
KEM25CDX Chlorine Dioxide/Chlorite sensors, 100 pack
500 replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM25CHR Kemio sensors 500 x Chlorine Total and Free High Range
$ 471.50 $ 565.80
DESCRIPTION
KEM25CHR sensors, 500 pack replacement sensors for chlorine total and free high range. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM25CLO Kemio sensors 500 x Chlorine Total and Free
$ 471.50 $ 565.80
DESCRIPTION
KEM25CLO sensors, 500 pack replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM25CLT Kemio sensors 500 x Chlorine Total and Free
$ 471.50 $ 565.80
DESCRIPTION
KEM25CLT sensors, 500 pack replacement sensors for chlorine dioxide low temperature. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest Photometer 7500 portable water analysis system PTBH7500
$ 1,935.00 $ 2,150.00
DESCRIPTION
The multiparameter 7500 is our most popular photometer due its versatility and simplicity of use. Reliable and intuitive, it has been designed to simplify the process of testing and managing water quality data.
The Photometer 7500 includes over 100 tests with the capability to add your own tests to the instrument.
- Effortlessly store your data and transfer them to the Palintest Aqua Pal app with Bluetooth connectivity.
- Downloadable data log with 500 results, including time and date of test
- Develop your own tests - load them via the USB port into your photometer with a simple software tool.
- Dual light source photometer offering direct-reading of pre-programmed test calibrations
Slice the payments with Klarna, on checkout. Lear more here!
Order your reagents.
Order 50 tests reagents packets here!
Order 250 tests reagents packets here!
SPECIFICATION
- Instrument Type Dual light source photometer offering direct-reading of pre-programmed test calibrations, Absorbance and Transmittance
- Peak Wavelengths 450nm, 500nm, 550nm, 570nm, 600nm, 650nm
- Accuracy ± 1.0% T
- Display 320 x 240 pixel LCD with backlight and contrast adjustment
- User Interface On-screen prompts available in English, French, Spanish, German, Italian, Turkish and Mandarin (Chinese).
- Size (W x L x H) and weight 150 x 250 x 70mm, 975g
- IP Rating IP67
- Power Supply 3 x 1.5v ‘AA’ batteries (typically 40 hours), mains power delivered by USB port
- Connectivity Palintest Bluetooth SMART (4.0) profile and USB for data download
- User Defined Methods Up to 30 additional methods
- Memory Capacity Up to 500 data sets. Each data set includes date, time, Sample ID, Operator ID, method number, method name, result, units
- Test Cuvettes Automatic centering for cylindrical cuvettes from 13 – 20mm OD
CONTENT
Photometer 7500 Bluetooth® instrument and light cap, 8 glass cuvettes (PT 595), dilution tube/sample container (PT 512), Standard USB lead (PT 747), cuvette brush (PT 663), 10 crush/stirring rods (PT 502), lint free cloth (PT 399), 10ml syringe (PT 369), instrument instruction manual, Palintest System method book. Supplied in a hard case
Footer
Main Menu
News & Updates
Sign up to get the latest on sales, new releases and more …
© 2020 Yamatho Supply. Designed by Out of the Sandbox. Powered by Shopify
