Water Analysis

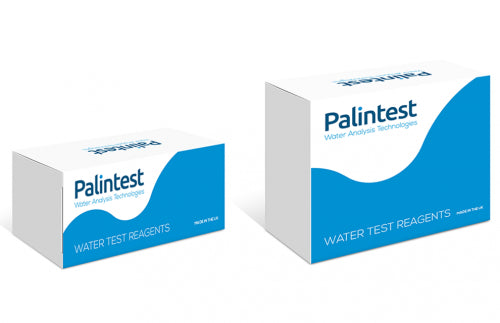

AP 031/1 Total Chlorine (DPD 3 - use with DPD 1) p/n AP031/1
$ 34.00
DESCRIPTION
Total Chlorine (DPD 3 - use with DPD 1)
This Palintest chlorine test uses the DPD method developed by Dr A T Palin and now internationally recognised as the standard method of testing for chlorine and other disinfectant residuals. In the Palintest DPD method, the reagents are provided in tablet form for maximum convenience and simplicity of use.
Free chlorine reacts with diethyl-p-phenylene diamine (DPD) in buffered solution to produce a pink coloration. The intensity of the colour is proportional to the free chlorine concentration.
Subsequent addition of excess potassium iodide induces a further reaction with any combined chlorine present. The colour intensity is now proportional to the total chlorine concentration; the increase in intensity represents the combined chlorine concentration. In this way, it is possible to differentiate between free and combined chlorine present in the sample. The colour intensities are measured using a Palintest Photometer.
The DPD Oxystop tablet is added after measurement for free chlorine but before the DPD 3 tablet. It prevents the reaction between shock treatment chemicals and potassium iodide which would give a positive response.
AP 021 Monochloramine (DPD 2 - use with DPD 1) p/n AP021
$ 34.50
DESCRIPTION
AP 021 Monochloramine (DPD 2 - use with DPD 1) - 250 tests
This Palintest chlorine test uses the DPD method developed by Dr A T Palin and now internationally recognised as the standard method of testing for chlorine and other disinfectant residuals. In the Palintest DPD method, the reagents are provided in tablet form for maximum convenience and simplicity of use.
Free chlorine reacts with diethyl-p-phenylene diamine (DPD) in buffered solution to produce a pink coloration. The intensity of the colour is proportional to the free chlorine concentration.
Subsequent addition of excess potassium iodide induces a further reaction with any combined chlorine present. The colour intensity is now proportional to the total chlorine concentration; the increase in intensity represents the combined chlorine concentration. In this way, it is possible to differentiate between free and combined chlorine present in the sample. The colour intensities are measured using a Palintest Photometer.
The DPD Oxystop tablet is added after measurement for free chlorine but before the DPD 3 tablet. It prevents the reaction between shock treatment chemicals and potassium iodide which would give a positive response.
AP 041 Total Chlorine (DPD 4) p/n AP041
$ 41.80
DESCRIPTION
AP 041 Total Chlorine (DPD 4) - 250 tests
This Palintest chlorine test uses the DPD method developed by Dr A T Palin and now internationally recognised as the standard method of testing for chlorine and other disinfectant residuals. In the Palintest DPD method, the reagents are provided in tablet form for maximum convenience and simplicity of use.
Free chlorine reacts with diethyl-p-phenylene diamine (DPD) in buffered solution to produce a pink coloration. The intensity of the colour is proportional to the free chlorine concentration.
Subsequent addition of excess potassium iodide induces a further reaction with any combined chlorine present. The colour intensity is now proportional to the total chlorine concentration; the increase in intensity represents the combined chlorine concentration. In this way, it is possible to differentiate between free and combined chlorine present in the sample. The colour intensities are measured using a Palintest Photometer.
The DPD Oxystop tablet is added after measurement for free chlorine but before the DPD 3 tablet. It prevents the reaction between shock treatment chemicals and potassium iodide which would give a positive response.
AT 058 DPD Neutralising p/n AT058
$ 42.00
DESCRIPTION
AT 058 DPD Neutralising - 250 tests
This Palintest chlorine test uses the DPD method developed by Dr A T Palin and now internationally recognised as the standard method of testing for chlorine and other disinfectant residuals. In the Palintest DPD method, the reagents are provided in tablet form for maximum convenience and simplicity of use.
Free chlorine reacts with diethyl-p-phenylene diamine (DPD) in buffered solution to produce a pink coloration. The intensity of the colour is proportional to the free chlorine concentration.
Subsequent addition of excess potassium iodide induces a further reaction with any combined chlorine present. The colour intensity is now proportional to the total chlorine concentration; the increase in intensity represents the combined chlorine concentration. In this way, it is possible to differentiate between free and combined chlorine present in the sample. The colour intensities are measured using a Palintest Photometer.
The DPD Oxystop tablet is added after measurement for free chlorine but before the DPD 3 tablet. It prevents the reaction between shock treatment chemicals and potassium iodide which would give a positive response.
AT 052 DPD Acidifying p/n AT052
$ 42.50
DESCRIPTION
AT 052 DPD Acidifying- 250 tests
This Palintest chlorine test uses the DPD method developed by Dr A T Palin and now internationally recognised as the standard method of testing for chlorine and other disinfectant residuals. In the Palintest DPD method, the reagents are provided in tablet form for maximum convenience and simplicity of use.
Free chlorine reacts with diethyl-p-phenylene diamine (DPD) in buffered solution to produce a pink coloration. The intensity of the colour is proportional to the free chlorine concentration.
Subsequent addition of excess potassium iodide induces a further reaction with any combined chlorine present. The colour intensity is now proportional to the total chlorine concentration; the increase in intensity represents the combined chlorine concentration. In this way, it is possible to differentiate between free and combined chlorine present in the sample. The colour intensities are measured using a Palintest Photometer.
The DPD Oxystop tablet is added after measurement for free chlorine but before the DPD 3 tablet. It prevents the reaction between shock treatment chemicals and potassium iodide which would give a positive response.
AT 056 DPD Glycine p/n AT056
$ 60.25
DESCRIPTION
AT 056 DPD Glycine - 250 tests
This Palintest chlorine test uses the DPD method developed by Dr A T Palin and now internationally recognised as the standard method of testing for chlorine and other disinfectant residuals. In the Palintest DPD method, the reagents are provided in tablet form for maximum convenience and simplicity of use.
Free chlorine reacts with diethyl-p-phenylene diamine (DPD) in buffered solution to produce a pink coloration. The intensity of the colour is proportional to the free chlorine concentration.
Subsequent addition of excess potassium iodide induces a further reaction with any combined chlorine present. The colour intensity is now proportional to the total chlorine concentration; the increase in intensity represents the combined chlorine concentration. In this way, it is possible to differentiate between free and combined chlorine present in the sample. The colour intensities are measured using a Palintest Photometer.
The DPD Oxystop tablet is added after measurement for free chlorine but before the DPD 3 tablet. It prevents the reaction between shock treatment chemicals and potassium iodide which would give a positive response.
AP 031 0-5 ppm Free and Total Chlorine (DPD 1 and DPD 3) -250 Tests p/n Ap031
$ 63.25
DESCRIPTION
AP 031 0-5 ppm Free and Total Chlorine (DPD 1 and DPD 3) - 250 tests
This Palintest chlorine test uses the DPD method developed by Dr A T Palin and now internationally recognised as the standard method of testing for chlorine and other disinfectant residuals. In the Palintest DPD method, the reagents are provided in tablet form for maximum convenience and simplicity of use.
Free chlorine reacts with diethyl-p-phenylene diamine (DPD) in buffered solution to produce a pink coloration. The intensity of the colour is proportional to the free chlorine concentration.
Subsequent addition of excess potassium iodide induces a further reaction with any combined chlorine present. The colour intensity is now proportional to the total chlorine concentration; the increase in intensity represents the combined chlorine concentration. In this way, it is possible to differentiate between free and combined chlorine present in the sample. The colour intensities are measured using a Palintest Photometer.
The DPD Oxystop tablet is added after measurement for free chlorine but before the DPD 3 tablet. It prevents the reaction between shock treatment chemicals and potassium iodide which would give a positive response.
Palintest SA 1100 Lead in Water Sensor, supplies pack PT435 and PT 435
$ 112.70
DESCRIPTION
The Palintest SA1100 provides simple and reliable monitoring for Lead in water.
Utilizing the long established voltammetric method of analysis with a unique disposable sensor system the Palintest SA1100 offers field or lab based analysis with excellent accuracy and resolution.
Take a sample and fill the sample container, add the buffer reagent and insert the disposable sensor. Close the lid and allow the Palintest SA1100 to automatically carry out the analysis in a short time. The analysis cycle consists of the two phases - plating and scanning. Data is then stored in the instrument memory with time and date for downloading later via the waterproof USB port.
CONTENT
Sensor Pack PT 435 includes:
10 Electrodes
10 tablets
10 Graduated tubes
Crushing rods
Calibration chip
Want to get a SA 1100? click here
Palintest Pocket Sensor – High Range Conductivity (0 – 19.90 mS/cm)
$ 145.00 $ 165.00
DESCRIPTION
Palintest Pocket TDS and Conductivity sensors are simple-to-use pocket sized instruments for
checking the total dissolved solids content or conductivity of water and aqueous solutions.
The TDS sensor calibration is based on the established factor that TDS equals conductivity
x 0.67 at 25°C (except TDS salt pool sensor which uses a factor of 0.55).
IP67 Conductivity (High Range) Pocket Sensor or conductivity (0 – 19.90 mS/cm) with automatic temperature compensation (ATC)

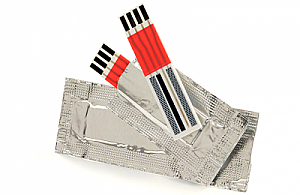

Palintest p/n KEM21CDX Kemio sensors 100 x Chlorine Dioxide & Chlorite
$ 149.50 $ 179.40
DESCRIPTION
KEM21CDX Chlorine Dioxide/Chlorite sensors, 100 pack
100 replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM21CHR Kemio sensors 100 x Chlorine Total and Free High Range
$ 149.50 $ 179.40
DESCRIPTION
KEM21CLO Kemio sensors 100 x Chlorine Total and Free high range, 100 pack
replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM21CLT Kemio sensors 100 x Chlorine Total and Free High Range Low Temp
$ 149.50 $ 179.40
DESCRIPTION
KEM21CLT Kemio sensors 100 x Chlorine Total and Free high range and low temp, 100 pack replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest Pocket Sensor – Low Range Conductivity (0 – 1990 μS/cm)
$ 165.00 $ 175.00
DESCRIPTION
Palintest Pocket TDS and Conductivity sensors are simple-to-use pocket sized instruments for
checking the total dissolved solids content or conductivity of water and aqueous solutions.
The TDS sensor calibration is based on the established factor that TDS equals conductivity
x 0.67 at 25°C (except TDS salt pool sensor which uses a factor of 0.55).
IP67 Conductivity (High Range) Pocket Sensor or conductivity (0 – 1990 μS/cm) with automatic temperature compensation (ATC)
Palintest SP 304 Sewage Effluent Kit
$ 275.00 $ 315.00
We only ship to Mexico, Central America, Caribbean, South America
The Palintest Sewage Effluent kit provides a simple means of checking the quality of sewage effluents. It is used extensively for control testing at small sewage works. Based on simplified methods of sewage effluent testing, the kit contains tests for the essential quality control checks required for the day-to-day operation of sewage effluent treatment plants. Features: Easy-to-use without the use of complicated equipment Suitable without formal training in water testing and analysis Palintest sewage effluent tests are based on those recommended by the Department of the Environment and the Water Research Centre.
CONTENT
The Palintest Sewage Effluent Kit contains:
3 x 100 ml Sample Containers
2 x 10 ml Test Tubes
1 x 13″ Turbidity Tube
1 x Thermometer
1 x Diskette Comparator
1 x Test Tube Brush Reagents for Acidifying SE, Permanganate Value and Universal pH
Palintest CS150 Chlorine (Free and Total) Sensors (500/pk) for CS 100 and CS 400 kits
$ 435.30
The CS150 is the 500 sensors pack to measure Chlorine (Free and Total) using the Palintest CS 100 or CS 400 devices.
The simplest water test kit available for measuring free or total chlorine. Portable, as accurate as DPD and now an USA EPA approved method.
The ChlordioX offers unique sequential sensor technology for determining chlorine dioxide - with USEPA approval.
- Simple sequential method without reagent or sample preparation – ideal for all users
- Electrochemical measuring technique – no interference from sample colour or solids
- Superb performance – report results with confidence.
You will need either a CS 100 or CS 400 units to use these sensors.
Palintest CS150 Chlorine (Free and Total) Sensors (500/pk) for CS 100 and CS 400 kits
$ 435.30
The CS150 is the 500 sensors pack to measure Chlorine (Free and Total) using the Palintest CS 100 or CS 400 devices.
The simplest water test kit available for measuring free or total chlorine. Portable, as accurate as DPD and now an USA EPA approved method.
The ChlordioX offers unique sequential sensor technology for determining chlorine dioxide - with USEPA approval.
- Simple sequential method without reagent or sample preparation – ideal for all users
- Electrochemical measuring technique – no interference from sample colour or solids
- Superb performance – report results with confidence.
You will need either a CS 100 or CS 400 units to use these sensors.
Palintest p/n KEM25CDX Kemio sensors 500 x Chlorine Dioxide & Chlorite
$ 471.50 $ 565.80
DESCRIPTION
KEM25CDX Chlorine Dioxide/Chlorite sensors, 100 pack
500 replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM25CLO Kemio sensors 500 x Chlorine Total and Free
$ 471.50 $ 565.80
DESCRIPTION
KEM25CLO sensors, 500 pack replacement sensors for chlorine dioxide and/or chlorite. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM25CHR Kemio sensors 500 x Chlorine Total and Free High Range
$ 471.50 $ 565.80
DESCRIPTION
KEM25CHR sensors, 500 pack replacement sensors for chlorine total and free high range. Sensors individually wrapped in desiccant foil. Includes calibration chip.
Palintest p/n KEM25CLT Kemio sensors 500 x Chlorine Total and Free
$ 471.50 $ 565.80
DESCRIPTION
KEM25CLT sensors, 500 pack replacement sensors for chlorine dioxide low temperature. Sensors individually wrapped in desiccant foil. Includes calibration chip.

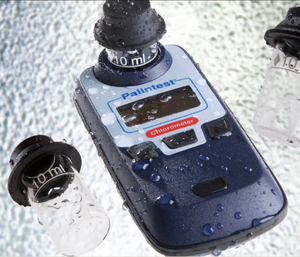

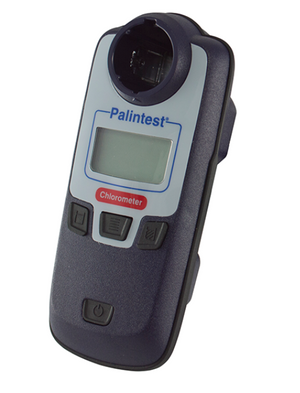

Palintest Chlorine Meter PTH 45D
$ 738.00
DESCRIPTION
The new Palintest Chlorometer offers a new dimension in chlorine in water testing. Used in conjunction with the DPD standard method developed by Palintest, it provides a level of simplicity and accuracy unrivalled in a portable hand-held instrument.
Watch this video to see how it works! Click HERE
FEATURES
- Tests for Chlorine (0.01 - 5 mg/l)
- Robust, Waterproof, IP 67 Rating
- Available in hard or soft carry case
- Easy to use (4 intuitive buttons)
- Ideal for routine water monitoring
INSTRUMENT
- Narrow band wavelength filters,
- Language Free, Universal symbol set
- Large backlit Graphics Display Screen
- Longer cell pathlength, excellent enhanced performance resolution at low concentrations
The Palintest Chlorometer is ideal for every application. The instrument is equally suitable for bench use in water treatment plants and works laboratories, or for field use by sampling officers and water quality inspectors.
TECHNICAL SPECIFICATIONS
|
Instrument Type |
Dual wavelength, direct-reading colourimeter |
|
Optics |
Palintest dual LED light source optical system with narrow band wavelength filters and photodetectors |
|
Wavelengths |
530 nm |
|
Wavelength Tolerance |
± 2nm |
|
Filter Bandwidth |
10nm |
|
LCD Display |
128 x 64 pixel screen |
|
Instrument Operating Temperature Range |
0 to 50°C |
|
Test Cells |
25 mm diameter tubes |
|
Blank/Zero setting |
Held in memory or reset for each reading |
|
Power Supply |
2 x 1.5V ‘AA’ batteries. Auto switch-off setting. |
|
Size |
150 x 70 x 45 mm |
|
Weight |
185g (including batteries) |
REAGENTS
|
TEST |
RANGE (mg/l) |
REAGENT PACKS(50 TESTS) |
REAGENT PACKS(250 TESTS) |
|
Free Chlorine (DPD 1) |
0.01 -5.0 |
||
|
Total Chlorine (DPD 1 & 3) |
0.01 -5.0 |
||
|
Chlorine (DPD 4) |
0.01– 5.0 |
*Please contact us for pricing on reagents

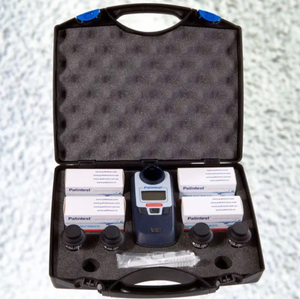

HARD CARRY CASE
Chlorometer, Chlorometer Instructions, 4 Crushing Rods, Test Tube Brush, 2 x Photometer Tubes.
Reagents:
Chlorine (DPD 1), Chlorine (DPD 3)
2 Cartons (100 reagents per carton)
Chlorine and Chlorine Dioxide Meter Palintest CLO2+ PTH046
$ 738.00
DESCRIPTION
The Compact ClO2+ meter provides field analysis of chlorine and chlorine dioxide using the DPD method.
The original Palin system was designed for monitoring of all forms of chlorine. Dr Palin extended the method to measure alternative disinfectants such as chlorine dioxide – a powerful and increasingly popular biocide. The Compact ClO2+ meter delivers the following features:
- User selection of chlorine or chlorine dioxide plus chlorite on a single instrument
- Simple tablet-based measurement methods for easy field analysis
- IP67 waterproof instrument for reliability in warm or humid environments.
Available in a choice of hard or soft case kits, the Compact ClO2+ meter is simplicity itself operating with four intuitive keys. Accessories include our unique Neutral Density Filter (NDF) check standards for validation in the field.
Watch this video to see how it works! Click HERE
TECHNICAL SPECIFICATION
|
Instrument Type |
Dual wavelength, direct-reading colourimeter |
|
Optics |
Palintest dual LED light source optical system with narrow band wavelength filters and photodetectors |
|
Wavelengths |
530 nm |
|
Wavelength Tolerance |
± 2nm |
|
Filter Bandwidth |
10nm |
|
LCD Display |
128 x 64 pixel screen |
|
Instrument Operating Temperature Range |
0 to 50°C |
|
Test Cells |
25 mm diameter tubes |
|
Blank/Zero setting |
Held in memory or reset for each reading |
|
Power Supply |
2 x 1.5V ‘AA’ batteries. Auto switch-off setting. |
|
Size |
150 x 70 x 45 mm |
|
Weight |
185g (including batteries) |
REAGENTS
|
TEST |
RANGE (Cl2 - mg/l) |
RANGE (ClO2- mg/l) |
REAGENT PACKS(50 TESTS) |
REAGENT PACKS(250 TESTS) |
|
DPD No 1 Tablets |
0.01 - 5.0 |
0.02 - 10 |
||
|
DPD No 3 Tablets |
0.01 - 5.0 |
- |
||
|
DPD Glycine Tablets |
- |
- |
|
*Please contact us for pricing on reagents
HARD CARRY CASE
Chlorometer, Chlorometer Instructions, 4 Crushing Rods, Test Tube Brush, 2 x Photometer Tubes.
Reagents:
Chlorine (DPD 1), Chlorine (DPD 3)
2 Cartons (100 reagents per carton)
Ozone Meter kit, hard case Palintest PTH 043
$ 738.00
DESCRIPTION
The Compact Ozone meter provides ozone testing using the DPD method in a waterproof, portable instrument. Ideal for drinking water, wastewater treatment and bottled water production.
Offering a wide dynamic range and a simple testing procedure, measuring ozone is a quick and easy process suitable for all. Wherever ozone is used as a disinfectant, the Compact Ozone meter is part of the control method.
- DPD tablet method – accurate, simple and stable for years
- Long cuvette path length for superb resolution at low levels
- Waterproof to IP67 and battery powered – take the Compact Ozone meter anywhere.
SPECIFICATIONS
| Measuring System | Dual LED source, direct-reading colorimeter |
| Ranges | 0 to 3 mg/L Ozone |
| Display | High clarity LCD with backlight |
| User Interface | Blank, read, function and power keys |
| Data Storage | Last 10 results |
| Size (W x L x H) | 65 x 150 x 40 mm |
| Weight | 200g (including batteries) |
| Power Supply | 2 x AA batteries |
Compact Ammonia Duo Meter Soft Case
$ 742.50
We only ship to Mexico, Central America, Caribbean, South America
Measure ammonia and ammonium in drinking water, wastewater or environmental samples with the widest choice of working ranges.
Perfect for any situation where ammonia monitoring is required, the Compact Ammonia Duo offers a choice of Nessler or Indophenol method analysis and reagent formats. Among the features are:
- Simple method selection and automatic retention of the last method used
- Widest choice of operating ranges – from low range drinking water testing to high range wastewater levels in a single instrument
- Convenient reagents formats – choose either Tubetests® or tablet reagents.
Soft case and hard case kits contain all the components required to start testing immediately – including a set of tablet reagents. Neutral Density Filter (NDF) Check Standards are available to validate performance of your meter in the field – part of the Palintest technical support offering.
Compact Ammonia Duo Meter, Tubetests® Adaptor (PT 565), 2 cuvettes, cuvette brush, crush/stirring rods, 50 tablet tests for ammonia, instruction manual. Supplied in a soft case with belt loop.
SPECIFICATION
| Measuring System | Dual LED source, direct-reading colorimeter |
| Ranges | 0 – 12 mg/l N (Indophenol Tubetests® reagent) 0 – 50 mg/l N (Indophenol Tubetests® reagent) |
| Display | High clarity LCD with backlight |
| User Interface | Blank, read, function and power keys |
| Data Storage | Last 10 results |
| Size (W x L x H) | 65 x 150 x 40 mm |
| Weight | 200g (including batteries) |
| Power Supply | 2 x ‘AA’ batteries |
CONSUMABLES
|
Name |
Range |
Part Code (25 tests) |
|
Ammonia 12N/50N Tubetests®, Indophenol Method |
0 – 12 mg/l N 0 – 50 mg/l N |
PL 400 PL 400 |
Palintest Chlorine in Water Duo Meter PTH 027
$ 805.00
DESCRIPTION
The new Palintest Chlorometer Duo offers a new dimension in chlorine testing. Used in conjunction with the DPD standard method developed by Palintest, it provides a level of simplicity and accuracy unrivalled in a portable hand-held instrument.
Want to see how it works? Play the video here
FEATURES
- Tests for Chlorine (DPD) 0.01 - 5 mg/l,Chlorine HR, 1 - 250 mg/l)
- Robust, Waterproof, IP 67 Rating
- Available in hard or soft carry case
- Easy to use (4 intuitive buttons)
- Ideal for routine water monitoring
INSTRUMENT
- Narrow band wavelength filters,enhanced performance
- Language Free, Universal symbol set
- Large backlit Graphics Display Screen
- Longer cell path length, excellent resolution at low concentrations
TECHNICAL SPECIFICATION
|
Instrument Type |
Dual wavelength, direct-reading colourimeter |
|
Optics |
Palintest dual LED light source optical system with narrow band wavelength filters and photodetectors |
|
Wavelengths |
530 nm |
|
Wavelength Tolerance |
± 2nm |
|
Filter Bandwidth |
10nm |
|
LCD Display |
128 x 64 pixel screen |
|
Instrument Operating Temperature Range |
0 to 50°C |
|
Test Cells |
25 mm diameter tubes |
|
Blank/Zero setting |
Held in memory or reset for each reading |
|
Power Supply |
2 x 1.5V ‘AA’ batteries. Auto switch-off setting. |
|
Size |
150 x 65 x 40 mm |
|
Weight |
200g (including batteries) |
Reagents
|
TEST |
RANGE (mg/l) |
REAGENT PACKS(50 TESTS) |
REAGENT PACKS(250 TESTS) |
|
DPD 1 Tablets |
0.01 -5.0 |
||
|
DPD 3 Tablets |
0.01 -5.0 |
||
|
Chlorine HR Tablets |
1 - 250 |
||
|
Acidifying GP |
|||
Hard Carry Case
Chlorometer Duo, Chlorometer Duo Instructions, 4 Crushing Rods, 4 x Photometer Tubes, Test Tube Brush
Reagents:
Chlorine (DPD 1), Chlorine (DPD 3),
Chlorine HR and Acidifying GP
4 Cartons (100 reagents per carton)
Palintest SK 300 Soil, Hydroponics and Irrigation Product Range
$ 1,256.25
We only ship to Mexico, Central America, Caribbean, South America
An ideal choice for soil management operations
Extending the range of tests to include calcium, magnesium and soil conductivity, the SK 300 is the combines digital and visual testing. Containing a simple tester block and a pocket conductivity meter it provides comprehensive testing at a competitive price, offering:
- Tests for multiple parameters, include calcium, nitrate and phosphate
- Portable and easy to use in the field
- Professional solution, excellent value
The SK 300 is supplied with one hard carry case and one soft carry case that includes:1 x Conductivity Pocket Sensor,1 x SK 300 instruction book1 x Soil Tester pH block,1 x Soil Tester N/MG/P, Block,1 x De-ion pack,Reagents for pH, Lime requirement, Nitrate, Phosphate, Phospahte, Potassium, Calcium and Magnesium
Palintest PTH 092 Compact Turbimeter, Hard Case
$ 1,551.35 $ 1,706.50
DESCRIPTION
ISO7027 compliant measurement of turbidity in drinking water, wastewater and surface water with Total Suspended Solids (TSS) capability.
Turbidity and Total Suspended Solids (TSS) are two of the most important indicator parameters for water quality monitoring. The Compact Turbimeter provides the ideal testing platform using unique QuadoptiX™ technology with a sophisticated yet simple to use instrument.
The Compact Turbimeter provides:
- Maximum reliability and accuracy in the field - the QuadoptiX™ system offers four independent measurement points systems in a waterproof portable instrument
- Variety of operating/reading modes including Total Suspended Solids, averaging and continuous capture to measure all types of samples effectively
- Comprehensive hard case kit including instrument, calibration standards, sample cuvettes and other accessories.
Add to the physical product the sophistication of data log for results and a record of calibration data for GLP and the Compact Turbimeter is a key component in any water monitoring package.
True ISO7027 Compliance
Both Nephelometric turbidity measurement and compensated measurement for higher turbidity values, the Compact Turbimeter is truly compliant with the international standard.
Wide Measurement Range
Offering a turbidity range from 0 – 1050 NTU, the Compact Turbimeter is supplied with a dilution tube for samples with even higher levels of turbidity.
Reliable Measurement in all Samples
The QuadoptiX™ system operates as four independent turbidity measurements – two at 90° and two at 180°. Using all measurements allows any sample variation, cuvette contamination and optical fouling to be removed from the measurement system – a unique approach in a portable instrument.
Total Suspended Solids Measurement
Relating turbidity to a weight of suspended solids is a simple operation of correlating gravimetric results to turbidity values recorded in the instrument. Once correlation is established, simply choose the TSS mode and read samples as mg/l Suspended Solids.
Waterproof and Battery Powered
Built to withstand immersion to IP67 specification, and with an exceptionally low power consumption, the Compact Turbimeter is an ideal field instrument.
User and Sample ID Control
Multiple-user IDs and Sample IDs can be tagged to results and recorded in the result and calibration log. The Sample ID allows site specification correlation to be created for individual sample points.
Warranty and Support
The Compact Turbimeter is provided with a two year warranty and supported by the full range of Palintest technical support, instrument service and application knowledge.
CONTENT
Compact Turbimeter instrument, 4 x SDVB calibration standards, 4 x sample cuvettes (PT 555), silicone oil (PT 120), dilution tube (PT 512), cleaning cloths and instructions. Supplied in a hard case.
SPECIFICATIONS| Optical System | QuadoptiX™ optical system with two independent 860nm LED sources, ISO7027 compliant |
| Range | 0.0 – 1050 NTU |
| Display | High clarity LCD with backlight |
| User Interface | Soft key access with English, French, Spanish, German and Italian language |
| Result Units | NTU, FNU, FTU and mg/l (TSS mode) |
| Modes | Turbidity (normal, average and continuous capture), Total Suspended Solids |
| Data Storage | 100 results including date, time, sample ID, operator ID and mode. Last 12 good calibrations including Operator ID |
| Size (W x L x H) | 82 x 225 x 50 mm |
| Weight | 340g (including batteries) |
| Power Supply | 2 x ‘AA’ batteries |
PT981 Palintest Arsenator Digital Arsenic Test Kit, Hard Case
$ 1,722.00 $ 1,850.00
DESCRIPTION
The guideline value of 10 μg/l Arsenic requires a field kit capable of performing to laboratory standard. The comprehensive DigiPAsS kit contains all the items required to perform accurate and reliable Arsenic determinations in the field.
Using the well-established Gutzeit method the system operates by converting all Arsenic in the sample to Arsine gas and detecting the gas produced quantitatively using a unique three stage filter. (The filter ensures all Arsine is ‘seen’ by the detector and also prevents excess Arsine or Hydrogen Sulphide being released during the 20 minute reaction time.)
Once the reaction is complete the concentration of Arsenic is quickly assessed using a colour chart for levels in excess of 100 μg/l Arsenic or the DigiPAsS instrument for superb accuracy in the 2 – 100 μg/l Arsenic range.
Watch a video here!
Each kit contains sufficient reagents and consumables for 420 tests packaged in a robust field carry case.
CONTENT
Arsenator Digital Arsenic Tester, tri-filter arsenic trap, 100ml reaction vessel, destruction filter holder (5 off), detection filter holder (5 off), hydrogen sulphide filter (10 off), reagents for 420 tests, visual comparison chart, forceps, gloves, dilution tube, cuvette brush, 9V battery, screwdriver, instructions
Palintest Photometer 7500 portable water analysis system PTBH7500
$ 1,935.00 $ 2,150.00
DESCRIPTION
The multiparameter 7500 is our most popular photometer due its versatility and simplicity of use. Reliable and intuitive, it has been designed to simplify the process of testing and managing water quality data.
The Photometer 7500 includes over 100 tests with the capability to add your own tests to the instrument.
- Effortlessly store your data and transfer them to the Palintest Aqua Pal app with Bluetooth connectivity.
- Downloadable data log with 500 results, including time and date of test
- Develop your own tests - load them via the USB port into your photometer with a simple software tool.
- Dual light source photometer offering direct-reading of pre-programmed test calibrations
Slice the payments with Klarna, on checkout. Lear more here!
Order your reagents.
Order 50 tests reagents packets here!
Order 250 tests reagents packets here!
SPECIFICATION
- Instrument Type Dual light source photometer offering direct-reading of pre-programmed test calibrations, Absorbance and Transmittance
- Peak Wavelengths 450nm, 500nm, 550nm, 570nm, 600nm, 650nm
- Accuracy ± 1.0% T
- Display 320 x 240 pixel LCD with backlight and contrast adjustment
- User Interface On-screen prompts available in English, French, Spanish, German, Italian, Turkish and Mandarin (Chinese).
- Size (W x L x H) and weight 150 x 250 x 70mm, 975g
- IP Rating IP67
- Power Supply 3 x 1.5v ‘AA’ batteries (typically 40 hours), mains power delivered by USB port
- Connectivity Palintest Bluetooth SMART (4.0) profile and USB for data download
- User Defined Methods Up to 30 additional methods
- Memory Capacity Up to 500 data sets. Each data set includes date, time, Sample ID, Operator ID, method number, method name, result, units
- Test Cuvettes Automatic centering for cylindrical cuvettes from 13 – 20mm OD
CONTENT
Photometer 7500 Bluetooth® instrument and light cap, 8 glass cuvettes (PT 595), dilution tube/sample container (PT 512), Standard USB lead (PT 747), cuvette brush (PT 663), 10 crush/stirring rods (PT 502), lint free cloth (PT 399), 10ml syringe (PT 369), instrument instruction manual, Palintest System method book. Supplied in a hard case
Palintest SA 1100 Lead in Water Sensor PT 430
$ 1,950.00 $ 2,125.00
DESCRIPTION
The Palintest SA1100 provides simple and reliable monitoring for Lead in water.
Utilizing the long established voltammetric method of analysis with a unique disposable sensor system the Palintest SA1100 offers field or lab based analysis with excellent accuracy and resolution.
Developed from our Palintest SA –1000 system, the standard instrument for Lead and Copper testing in water, the Palintest SA1100 is simplicity itself. Weighing only 975g and completely waterproof the instrument is perfect for any environment.
Take a sample and fill the sample container, add the buffer reagent and insert the disposable sensor. Close the lid and allow the Palintest SA1100 to automatically carry out the analysis in a short time. The analysis cycle consists of the two phases - plating and scanning. Data is then stored in the instrument memory with time and date for downloading later via the waterproof USB port.
CONTENT
Includes:
- SA 1100 Instrument
- Carrying case
- Sensor Pack PT 435:
10 Electrodes
10 tablets
10 Graduated tubes
Crushing rods
Calibration chip
Need more sensors? Order the PT 435 here
SPECIFICATIONS
|
Instrument Type |
Fixed voltage potentiostat |
|
Display |
Backlit, graphical LCD (42 x 22 mm), with six language options and direct-reading of results in μg/l |
|
User Selectable Options |
Set time and date, date format, display language and reset sample number |
|
Data Logging |
Stores 500 previous readings and offers prompts when 40 and 20 left |
|
Interface |
Waterproof USB connection to PC |
|
Power |
4 x 1.5v ‘AA’ alkaline batteries. Battery power saving system with auto switch-off after five minutes. Powered via USB port when connected to computer |
|
Analysis Time |
3 minutes |
|
Precision Range |
Lead - 2 – 100 μg/l, Copper - 50 – 2000 μg/l |
|
Size |
Instrument only 170 x 126 x 116 mm |
|
Weight |
975g |
Palintest SA 1100 Copper in Water Sensor PT 431
$ 1,950.00 $ 2,115.00
DESCRIPTION
The Palintest SA1100 provides simple and reliable monitoring for Lead or Copper in water.
Utilizing the long established voltammetric method of analysis with a unique disposable sensor system the Palintest SA1100 offers field or lab based analysis with excellent accuracy and resolution.
Developed from our Palintest SA –1000 system, the standard instrument for Lead and Copper testing in water, the Palintest SA1100 is simplicity itself. Weighing only 975g and completely waterproof the instrument is perfect for any environment.
Take a sample and fill the sample container, add the buffer reagent and insert the disposable sensor. Close the lid and allow the Palintest SA1100 to automatically carry out the analysis in a short time. The analysis cycle consists of the two phases - plating and scanning. Data is then stored in the instrument memory with time and date for downloading later via the waterproof USB port.
SPECIFICATIONS
|
Instrument Type |
Fixed voltage potentiostat |
|
Display |
Backlit, graphical LCD (42 x 22 mm), with six language options and direct-reading of results in μg/l |
|
User Selectable Options |
Set time and date, date format, display language and reset sample number |
|
Data Logging |
Stores 500 previous readings and offers prompts when 40 and 20 left |
|
Interface |
Waterproof USB connection to PC |
|
Power |
4 x 1.5v ‘AA’ alkaline batteries. Battery power saving system with auto switch-off after five minutes. Powered via USB port when connected to computer |
|
Analysis Time |
3 minutes |
|
Precision Range |
Lead - 2 – 100 μg/l, Copper - 50 – 2000 μg/l |
|
Size |
Instrument only 170 x 126 x 116 mm |
|
Weight |
975g |
Palintest Kemio instrument kit soft carrying bag p/n KEMS10DIS
$ 2,300.00 $ 2,450.00
DESCRIPTION
Kemio™ is the next generation measurement platform, delivering the validation you need from a method you can trust. Kemio™ utilizes a sophisticated electrochemical technique that removes complexity for the user, giving you clear results for confident decision making.
- Repeatable and reliable results with minimal user input
- Automatically stores all results for a complete, auditable dataset
- Truly simple test method requiring no user training
- Get clear pass/fail results to enable corrective action
- Suitable for all sample types, not affected by color, turbidity, floating particles or ambient light
- Kemio uses the same EPA approved method as the ChloroSense and ChlordioX Plus
Multiparameter testing platform
Kemio™ performs tests for Chlorine (free and total), Chlorine Dioxide, Chlorite and Peracetic Acid (PAA) on one instrument with the use of different sensors.
KIT CONTENT
Instrument, soft protective case, check standards, USB cable, international power adapter, quick start instructions and stylus soft case for transporting Kemio and consumables.
REAGENTS
Reagent |
# of Tests |
Range |
Part number |
CR-1 Reagent (Chlorite Test) |
|
|
PT546 |
CR-2 Reagent (Chlorite Test) |
|
|
PT547 |
Glycine Reagent |
|
|
PT549 |
Kemio Sensors for Chlorine (High Range) |
100 |
Free Chlorine 0.1 – 25 mg/LTotal Chlorine 1- 500 mg/L |
KEM21CHR |
Kemio Sensors for Chlorine (High Range) |
500 |
Free Chlorine 0.1 – 25 mg/LTotal Chlorine 1- 500 mg/L |
KEM25CHR |
Kemio Sensors for Chlorine (Standard Range) |
100 |
Free Chlorine 0.02 - 10 mg/LTotal Chlorine 0.02 - 75 mg/L |
KEM21CLO |
Kemio Sensors for Chlorine (Standard Range) |
500 |
Free Chlorine 0.02 - 10 mg/LTotal Chlorine 0.02 - 75 mg/L |
KEM25CLO |
Kemio Sensors for Chlorine Dioxide/Chlorite |
100 |
Chlorine Dioxide 0.02 - 500 mg/LChlorite 0.02 - 50 mg/L |
KEM21CDX |
Kemio Sensors for Chlorine Dioxide/Chlorite |
500 |
Chlorine Dioxide 0.02 - 500 mg/LChlorite 0.02 - 50 mg/L |
KEM25CDX |
Kemio Sensors for Paracetic Acid (Low Range) |
100 |
0.02 – 50 mg/L |
KEM21PAL |
Kemio Sensors for Paracetic Acid (Low Range) |
500 |
0.02 – 50 mg/L |
KEM25PAL |
Kemio Sensors for Paracetic Acid (PAA) |
100 |
5 – 2000 mg/L |
KEM21PAA |
Kemio Sensors for Paracetic Acid (PAA) |
500 |
5 – 2000 mg/L |
KEM21PAA |
Palintest Potatest+ PTW10005 Microbiological field lab
$ 2,580.00 $ 2,837.00
DESCRIPTION
Widely used by organisations involved in large-scale emergencies or simple water quality testing projects, the Potatest is a lightweight microbiological test kit offering low-cost, rapid response testing of basic water quality parameters.
Designed to complement the increased emphasis now being placed upon water safety plans (WSPs) and their role in assessing and managing risk throughout each step of the drinking water supply process:
- Removable water safety kit (WSK) – contains instruments and visual test equipment to determine whether a full microbiological verification is required
- Rapid field microbiological analysis – using membrane filtration protocols for screening of faecal and/or total coliforms
- Supplied with consumables and parts sufficient for processing/analysing 200 samples
SPECIFICATIONS
| Microbiological Capacity | Wagtech incubator with consumables for 200 tests for thermotolerant/faecal coliforms or total coliforms. Optional Nutridisk capability for additional parameters including faecal streptococci, pseudomonas aeruginosa, and E. coli |
| Physico-Chemical Parameters | Free chlorine, combined chlorine, total chlorine, turbidity, pH |
| Test Protocols | 37°C and 44°C temperature selections, user selectable time profiles, automatic resuscitation period profile |
| Temperature Stability | ± 0.1°C |
| Temperature Control | Laser-trimmed thermistor pair with automatic temperature validation |
| User Interface | On screen and audible prompts available in English, French, Spanish and Chinese |
| Data Log | Last five incubation cycles performance report |
| Connectivity | Micro-USB connection to Windows and Android devices for data download |
| Power Supply | Replaceable sealed lead acid battery with mains, vehicle and external charging options |
| Power Consumption | High thermal efficiency heating system, five full cycles from a fully charged battery |
ADDITIONAL INFORMATION
| Part Code | Description |
| PTW 10005 | Wagtech Potatest. Comprising: Wagtech incubator with standard test protocols and audible prompts, petri dish racks, high performance lead acid battery with capacity for at least 5 cycles per charge, mains charger with international adaptors, vehicle socket battery power lead, crocodile clip power leads. Membrane filtration assembly, bronze disc, pistol grip vacuum pump with no-kink silicone tubing, media measuring devices (MMDs x5), 38.1g membrane lauryl sulphate broth, Pasteur pipettes (x5), hand lens, forceps, aluminium re-usable petri dishes (x20), sterilised and sealed membrane filters (x200), absorbent pads (x200), absorbent pad dispenser, steel sampling cup, sampling cable. Polypropylene 250ml beaker, quick start prompt cards, sterilisable integrated work surface. Contour Comparator and discs, comparator cuvettes (x4), comparator reagents for 250 tests for free and total chlorine. Double-length turbidity tube. Pocket pH sensor and pH calibration buffers . Cuvette brush, dilution tube, crush/stir rods, De-Ion pack, instructions |
SPARES AND CONSUMABLES
| Part Code | Description |
| PTW10450 | Coliform starter pack - 200 tests for either thermotolerant (faecal) coliforms or total coliforms including membane filters, absorbent pads, membrane lauryl sulphate broth (38.1g) |
| PTW10452 | Membrane lauryl sulphate broth, 500g (MLSB) powder for field preparation of nutrient media. Supplied in sealed pack with tamper seal. |
| PTW10454 | Membrane lauryl sulphate broth, 38.1g MLSB powder for field preparation of nutrient media. Supplied in sealed pack with tamper seal. |
| PTW10459 | Membrane filters (200 pack) - White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack. |
| PTW10460 | Absorbent pads and membranes (200 pack) - White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack. Absorbent pads, 2 packs of 100 each for use with absorbent pad dispenser. |
| PTW10461 | Membrane filters (1000 pack) - White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack. |
| PTW10462 | Absorbent pads and membranes, 1000 pack White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack, 5 packs of 200 each. Absorbent pads, 10 packs of 100 each for use with absorbent pad dispenser. |
| PTW10463 | Absorbent pads (100 pack) - for use with pad dispenser. |
| PT1005 | Wagtech incubator - Replacement incubator for Potatest+, Potakit + and Potatech+. Excludes mains adaptor, in-vehicle charger and external battery connectors. |
| PTW10400 | Membrane filtration unit - Complete membrane filtration unit including sampling cup, retrieval cord, gas-grade silicone filtration assembly, reversible filter cup, bronze disc. |
| PTW10401 | Pistol grip hand vacuum pump - High performance vacuum pump with 6 mm tubing connector |
| PTW10420 | Aluminium petri dishes (x20), 47 mm diameter. |
NutriDisks
| Part Code | Description |
| PTW10060 | NutriDisk pack for faecal streptococci Azide NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10062 | NutriDisk pack for pseudomonas aeruginosa Cetrimide NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10064 | NutriDisk pack for E. coli and faecal coliforms M-FC NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10065 | NutriDisk pack for total coliforms and E. coli Chromocult NPS NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10066 | NutriDisk pack for total colony forming units plate count NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10067 | NutriDisk pack for salmonella typhi Bismuth-Sulphite NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10068 | NutriDisk pack for E. coli ECD NPS NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10069 | NutriDisk pack for E. coli and coliforms Endo NPS NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10468 | Faecal coliform ampoules - box of 50, 2.2 ml |
| PTW10470 | Total coliform ampoules - box of 50, 2.2 ml |
Professional Soil Management Kit SKW 400
$ 2,961.00
We only ship to Mexico, Central America, Caribbean, South America
The Professional Soil Management kit delivers analysis of the key macro and micro nutrients required for improved crop yield and horticulture production.
At the heart of the Professional Soil Management kit is the Soiltest 10 photometer, giving laboratory accuracy wherever the analysis takes place. Key features include:
- Robust field kit and waterproof, battery powered instruments – carryout analysis anywhere
- Simple tablet and powder-based reagent methods – suitable for all users
- Range of accessories – add to the Professional Soil Management kit with extra parameters.
Designed for simplicity and comparable with laboratory methods, the Professional Soil Management kit brings soil analysis to the user without requiring samples to be shipped to a remote laboratory.
Content
The SK 400 is supplied with one hard carry case and one soft carry case that includes:1 x Soil Test 10 Photometer
1 x Conductivity Pocket Sensor
1 x pH Pocket Sensor
1 x SK 400 Instruction Book
1 x De-Ion Pack
50 x Tests for pH, Lime Requirement, Nitrate Nitrogen, Phosphate Phosphorus, Potassium, Calcium and Magnesium
Consumables
| Name | Reagent Range | Product Code |
| Magnesium/Calcium Soil Pack | 0 – 500 mg/l | SKR 005 |
| Nitrate Soil Pack | 0 – 25 mg/l | SKR 001 |
| Phosphate Soil Pack | 0 – 150 mg/l | SKR 002 |
| Phosphate Soil Pack | 0 – 150 mg/l | SKR 003 |
| Potassium Soil Pack | 0 – 450 mg/l | SKR 004 |
Accessories
| Palintest Sample Containers, 100/50 ml, plastic | PT 510/PT 506 |
| Filter Funnel (7 cm, plastic) | PT 607 |
| Filter Papers (11 cm diameter) | PT 618 |
Palintest Kemio instrument kit hard carrying case p/n KEMH10DIS
$ 3,105.00 $ 3,450.00
DESCRIPTION
Kemio™ is the next generation measurement platform, delivering the validation you need from a method you can trust. Kemio™ utilizes a sophisticated electrochemical technique which removes complexity for the user, giving you clear results for confident decision making.
- Repeatable and reliable results with minimal user input
- Automatically stores all results for a complete, auditable dataset
- Truly simple test method requiring no user training
- Get clear pass/fail results to enable corrective action
- Suitable for all sample types, not affected by colour, turbidity, floating particles or ambient ligh
- Kemio uses the same EPA approved method as the ChloroSense and ChlordioX Plus
Multiparameter testing platform
Kemio™ performs tests for Chlorine (free and total), Chlorine Dioxide, Chlorite and Peracetic Acid (PAA) on one instrument with the use of different sensors.
KIT CONTENT
Instrument, hard protective case, check standards, USB cable, international power adapter, quick start instructions and stylus soft case for transporting Kemio and consumables.
REAGENTS
Reagent |
# of Tests |
Range |
Part number |
CR-1 Reagent (Chlorite Test) |
|
|
PT546 |
CR-2 Reagent (Chlorite Test) |
|
|
PT547 |
Glycine Reagent |
|
|
PT549 |
Kemio Sensors for Chlorine (High Range) |
100 |
Free Chlorine 0.1 – 25 mg/LTotal Chlorine 1- 500 mg/L |
KEM21CHR |
Kemio Sensors for Chlorine (High Range) |
500 |
Free Chlorine 0.1 – 25 mg/LTotal Chlorine 1- 500 mg/L |
KEM25CHR |
Kemio Sensors for Chlorine (Standard Range) |
100 |
Free Chlorine 0.02 - 10 mg/LTotal Chlorine 0.02 - 75 mg/L |
KEM21CLO |
Kemio Sensors for Chlorine (Standard Range) |
500 |
Free Chlorine 0.02 - 10 mg/LTotal Chlorine 0.02 - 75 mg/L |
KEM25CLO |
Kemio Sensors for Chlorine Dioxide/Chlorite |
100 |
Chlorine Dioxide 0.02 - 500 mg/LChlorite 0.02 - 50 mg/L |
KEM21CDX |
Kemio Sensors for Chlorine Dioxide/Chlorite |
500 |
Chlorine Dioxide 0.02 - 500 mg/LChlorite 0.02 - 50 mg/L |
KEM25CDX |
Kemio Sensors for Paracetic Acid (Low Range) |
100 |
0.02 – 50 mg/L |
KEM21PAL |
Kemio Sensors for Paracetic Acid (Low Range) |
500 |
0.02 – 50 mg/L |
KEM25PAL |
Kemio Sensors for Paracetic Acid (PAA) |
100 |
5 – 2000 mg/L |
KEM21PAA |
Kemio Sensors for Paracetic Acid (PAA) |
500 |
5 – 2000 mg/L |
KEM21PAA |
Professional Soil Management Kit SKW500
$ 3,490.00 $ 4,013.00
The Professional Soil Management kit delivers analysis of the key macro and micro nutrients required for improved crop yield and horticulture production.
At the heart of the Professional Soil Management kit is the Soiltest 10 photometer, giving laboratory accuracy wherever the analysis takes place. Key features include:
- Robust field kit and waterproof, battery powered instruments – carryout analysis anywhere
- Simple tablet and powder-based reagent methods – suitable for all users
- Range of accessories – add to the Professional Soil Management kit with extra parameters.
Designed for simplicity and comparable with laboratory methods, the Professional Soil Management kit brings soil analysis to the user without requiring samples to be shipped to a remote laboratory.
Content
The SKW 500 is supplied with one hard carry case and one soft carry case that includes:1 x Soil Test 10 Photometer
1 x Conductivity Pocket Sensor
1 x pH Pocket Sensor
1 x SK 500 Instruction Book
1 x De-Ion Pack
50 x Tests for pH, Lime Requirement, Nitrate Nitrogen, Phosphate Phosphorus, Potassium, Calcium and Magnesium
Consumables
| Name | Reagent Range | Product Code |
| Magnesium/Calcium Soil Pack | 0 – 500 mg/l | SKR 005 |
| Nitrate Soil Pack | 0 – 25 mg/l | SKR 001 |
| Phosphate Soil Pack | 0 – 150 mg/l | SKR 002 |
| Phosphate Soil Pack | 0 – 150 mg/l | SKR 003 |
| Potassium Soil Pack | 0 – 450 mg/l | SKR 004 |
Accessories
| Palintest Sample Containers, 100/50 ml, plastic | PT 510/PT 506 |
| Filter Funnel (7 cm, plastic) | PT 607 |
| Filter Papers (11 cm diameter) | PT 618 |
Palintest / Wagtech Potatest® 2 Advanced Portable Microbiological Water Quality Laboratory PTW 10020
$ 3,954.00 $ 4,350.00
DECRIPTION
Potatest 2 Kit, comprising:
Dual Potalab incubators with independent temperature control and audible prompts, petri dish racks (x2), high performance lead acid battery with capacity for at least five cycles per incubator, mains charger with international adaptors, vehicle socket battery power lead, crocodile clip power leads; Membrane filtration assembly, bronze disc, pistol grip vacuum pump with no-kink silicone tubing, Media Measuring Devices (MMDs x5), 38.1g membrane lauryl sulphate broth, Pasteur pipettes (x5), hand lens, forceps, Aluminium re-usable petri dishes (x40), sterilised and sealed membrane filters (x200), absorbent pads (x200), absorbent pad dispenser, steel sampling cup, sampling cable, polypropylene 250 ml beaker, quick start prompt cards, full microbiological instruction manual, sterilisable integrated work surface.
CONTENT
Wagtech Incubator with standard test protocols and audible prompts, high performance Lead Acid battery with capacity for at least 5 cycles per charge, mains charger with international adaptors, vehicle socket battery power lead, crocodile clip power leadsMembrane Filtration Unit, bronze disc, pistol grip vacuum pump with no-kink silicone tubing, 5 Media Measuring Devices (MMDs), 38.1g Membrane Lauryl Sulphate Broth, 5 Pasteur pipettes, hand lens, forceps, 20 Aluminium re-usable petri dishes, petri dish rack, 200 sterilised and sealed membrane filters, 200 absorbent pads, absorbent pad dispenser, steel sampling cup, sampling cable
Polypropylene 250ml beaker, sterilisable integrated work surface
Contour Comparator and discs, 4 comparator cuvettes, comparator reagents for 200 tests for Free and Total Chlorine, Ammonia, Fluoride, Nitrite and Nitrate
Visual Arsenic Detection Kit with consumables for 100 tests
Double length Turbidity Tube
Pocket pH Sensor and pH calibration buffers
Pocket Conductivity Sensor with conductivity calibration standard
Cuvette brush, Dilution tube, crush/stir rods, De-ion pack, instructions, quick start prompt cards
INCUBATOR
|
Test Protocols |
37°C and 44°C temperature selections, user selectable time profiles, automatic resuscitation period profile |
|
Temperature Stability |
± 0.1°C |
|
Temperature Control |
Laser-trimmed thermistor pair with automatic temperature validation. Optional Peltier cooled version. |
|
User Interface |
On screen and audible prompts available in English, French, Spanish and Chinese |
|
Data Log |
Last five incubation cycles performance report |
|
Connectivity |
Micro-USB connection to Windows® and Android devices for data download |
|
Size (W x L x H) |
110 x 123 x 145mm |
|
Weight |
690g |
|
Power Supply |
Replaceable sealed lead acid battery with mains, vehicle and external charging options |
|
Power Consumption |
High thermal efficiency heating system, 5 full cycles from a fully charged battery |
CONSUMABLES
| Part Code | Description |
| PTW10450 | Coliform starter pack - 200 tests for either thermotolerant (faecal) coliforms or total coliforms including membane filters, absorbent pads, membrane lauryl sulphate broth (38.1g) |
| PTW10452 | Membrane lauryl sulphate broth, 500g (MLSB) powder for field preparation of nutrient media. Supplied in sealed pack with tamper seal. |
| PTW10454 | Membrane lauryl sulphate broth, 38.1g MLSB powder for field preparation of nutrient media. Supplied in sealed pack with tamper seal. |
| PTW10459 | Membrane filters (200 pack) - White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack. |
| PTW10460 | Absorbent pads and membranes (200 pack) - White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack. Absorbent pads, 2 packs of 100 each for use with absorbent pad dispenser. |
| PTW10461 | Membrane filters (1000 pack) - White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack. |
| PTW10462 | Absorbent pads and membranes, 1000 pack White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack, 5 packs of 200 each. Absorbent pads, 10 packs of 100 each for use with absorbent pad dispenser. |
| PTW10463 | Absorbent pads (100 pack) - for use with pad dispenser. |
| PT1010 | Wagtech incubator - Replacement incubator for Potalab+ and Potatest 2. Excludes mains adaptor, in-vehicle charger and external battery connectors. |
| PTW10400 | Membrane filtration unit - Complete membrane filtration unit including sampling cup, retrieval cord, gas-grade silicone filtration assembly, reversible filter cup, bronze disc. |
| PTW10401 | Pistol grip hand vacuum pump - High performance vacuum pump with 6 mm tubing connector |
| PTW10420 | Aluminium petri dishes (x20), 47 mm diameter. |
SPECIFICATIONS
| Microbiological Capacity | Dual Wagtech incubator with consumables for 200 tests for thermotolerant/faecal coliforms or total coliforms. Optional Nutridisk capability for additional parameters including faecal streptococci, pseudomonas aeruginosa, salmonella and E. coli |
| Test Protocols | 37°C, 44°C, up to 6 user-defined profiles from 20 - 50°C, user selectable time periods for all temperatures, automatic resuscitation period inclusion |
| Temperature Stability | ± 0.1°C |
| Temperature Control | Laser-trimmed thermistor pair with automatic temperature validation |
| User Interface | On-screen and audible prompts available in English, French, Spanish and Chinese |
| Data Log | Last five incubation cycles performance report |
| Connectivity | Micro-USB connection to Windows and Android devices for data download and audible prompt upload via dedicated app |
| Power Supply | Replaceable sealed lead acid battery with mains, vehicle and external charging options |
| Power Consumption | High thermal efficiency heating system, five full cycles from a fully charged battery |

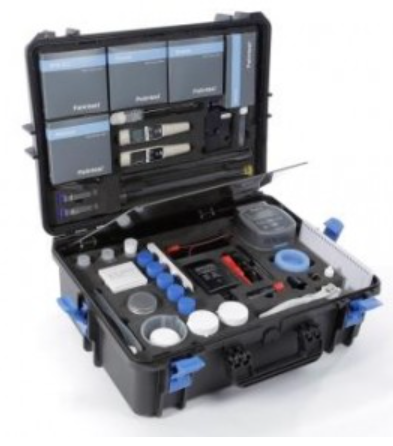

Potakit® + Basic Portable Water Quality Laboratory PTW 10030
$ 4,663.25 $ 5,362.75
DECRIPTION
Designed for routine testing in the field, the Potakit® + includes a combination of visual and digital test instruments that offer an affordable yet accurate testing solution.
The kit of choice for NGOs and water technicians implementing small-scale rural WASH programs and for organizations with limited funds but who still wish to conduct an accurate assessment of key drinking water quality parameters in the field. Key features of the Potakit® + include:
- Intuitive microbiological analysis – simple-to-use incubator with unique audible prompts for ease of operation and USB connection for data download
- Complete physico-chemical analysis – visual testing apparatus for turbidity, Ammonia, Arsenic, Free and Total Chlorine, Fluoride, Nitrite and Nitrate plus Pocket Sensors for pH and conductivity
- Ergonomic kit layout – all key components laid out logically and conveniently to guide users through the test protocol
The Potakit® + provides cost-effective drinking water testing for a wide range of circumstances and is an ideal resource for WASH program implementation.
CONTENT
Wagtech Incubator with standard test protocols and audible prompts, high performance Lead Acid battery with capacity for at least 5 cycles per charge, mains charger with international adaptors, vehicle socket battery power lead, crocodile clip power leadsMembrane Filtration Unit, bronze disc, pistol grip vacuum pump with no-kink silicone tubing, 5 Media Measuring Devices (MMDs), 38.1g Membrane Lauryl Sulphate Broth, 5 Pasteur pipettes, hand lens, forceps, 20 Aluminium re-usable petri dishes, petri dish rack, 200 sterilised and sealed membrane filters, 200 absorbent pads, absorbent pad dispenser, steel sampling cup, sampling cable
Polypropylene 250ml beaker, sterilisable integrated work surface
Contour Comparator and discs, 4 comparator cuvettes, comparator reagents for 200 tests for Free and Total Chlorine, Ammonia, Fluoride, Nitrite and Nitrate
Visual Arsenic Detection Kit with consumables for 100 tests
Double length Turbidity Tube
Pocket pH Sensor and pH calibration buffers
Pocket Conductivity Sensor with conductivity calibration standard
Cuvette brush, Dilution tube, crush/stir rods, De-ion pack, instructions, quick start prompt cards
INCUBATOR
Potakit® + Incubator
|
Test Protocols |
37°C and 44°C temperature selections, user selectable time profiles, automatic resuscitation period profile |
|
Temperature Stability |
± 0.1°C |
|
Temperature Control |
Laser-trimmed thermistor pair with automatic temperature validation. Optional Peltier cooled version. |
|
User Interface |
On screen and audible prompts available in English, French, Spanish and Chinese |
|
Data Log |
Last five incubation cycles performance report |
|
Connectivity |
Micro-USB connection to Windows® and Android devices for data download |
|
Size (W x L x H) |
110 x 123 x 145mm |
|
Weight |
690g |
|
Power Supply |
Replaceable sealed lead acid battery with mains, vehicle and external charging options |
|
Power Consumption |
High thermal efficiency heating system, 5 full cycles from a fully charged battery |
SPECIFICATIONS

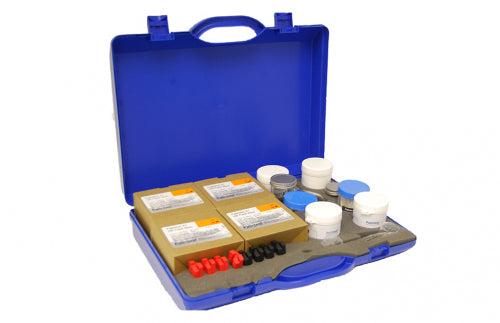

Potakit® + Kit Specification
|
Microbiological Capacity |
Wagtech® incubator with consumables for 200 tests for Thermotolerant/Faecal Coliforms or Total Coliforms. Optional Nutridisk capability for additional parameters including Faecal Streptococci, Pseudomonas aeruginosa, Salmonella and E. coli |
|
Physico-Chemical Parameters |
Includes Ammonia, Arsenic, Free Chlorine, Total Chlorine, Nitrate, Nitrite, Turbidity, pH, Conductivity. Additional parameters available. |
|
Size (W x L x H) |
Single heavy duty field case 555 x 428 x 211mm |
|
Weight |
13 kg |
Footer
Main Menu
News & Updates
Sign up to get the latest on sales, new releases and more …
© 2020 Yamatho Supply. Designed by Out of the Sandbox. Powered by Shopify
